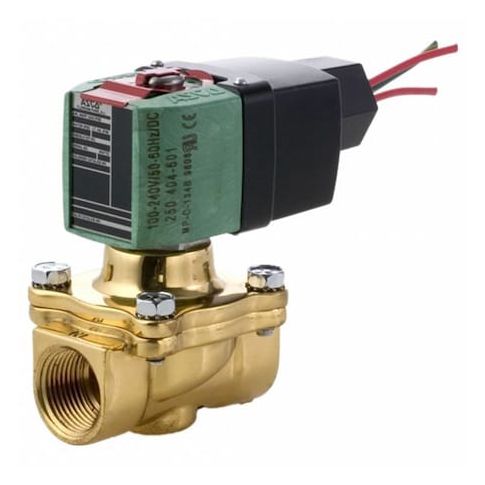

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 2 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8210P100LF 100-240

• The ASCO 8210P100LF 100-240 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of air, water, and light oil. It features a 2-way, 2-position valve configuration with a high-flow valve type. The valve body is made of brass and includes a coil for actuation, enabling automated and remote flow control. Vertical mounting is supported. The valve is rated for operation within 100–240 V AC/DC, 60 Hz.

  Key Features:

  • - Orifice diameter: 1.0 to 1.75 in
  • - Nominal Pipe Size: 2 in
  • - Maximum Ambient Temperature: 140°F
  • Minimum Ambient Temperature: 14°F
  • - Maximum Fluid Temperature: 180°F
  • - Operating Pressure Differential: 5 to 350 psi for air/inert gas
  • 5 to 90 psi for light oil
  • 5 to 125 psi for water
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Seal Material: NBR (Buna-N)
  • - Includes Coil: Yes
  • - Valve Starting Configuration: Normally Closed
  • - Valve Ways: 2-Way
  • Valve Positions: 2-Position
  • - Response Time: 1 second
  • - Environmental ratings: Indoor and outdoor use
  • - Thread Type: NPT for inlet and outlet connections
  • - Wattage: 1.5 W
  • - Standards: UL Listed
