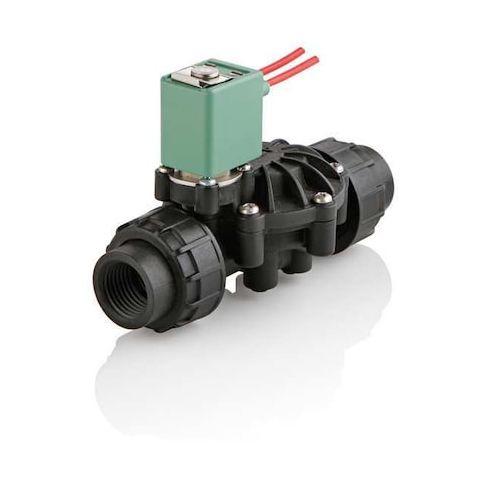

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, High Pressure, Temperature MPN:8212A037L1100F0
The ASCO 8212A037L1100F0 is a reliable and efficient pilot-operated solenoid valve designed for controlling water flow in water conditioning and purification systems. Its 2-way/2-position design and high-pressure rating make it ideal for applications where precise control is necessary. The valve's compatibility with water media and ability to operate at temperatures up to 150°F make it a versatile solution for various industries. With its compact dimensions and low power consumption, this valve is perfect for use in tight spaces and energy-efficient systems, providing consistent and reliable performance in applications such as water treatment, irrigation, and industrial processes.
Top product features:
- Pilot-operated design allows for precise control of water flow
- EPDM seal ensures reliable and leak-free operation
- 2-way/2-position valve design allows for easy switching between open and closed positions
Top product applications:
- Water conditioning systems
- Purification systems
- Industrial process control systems
The ASCO 8212A037L1100F0 is a pilot-operated, normally closed solenoid valve designed for controlling the flow of water in water conditioning and purification systems. It features a 2-way/2-position valve design with a nominal pipe size of 3/4 inch and an orifice diameter of 3/4 inch. The valve body is made from polymide polyphenylene ether, and it includes an EPDM seal. It is compatible with water media. Maximum operating temperature: 150°F. Maximum differential pressure: 150 psi (air, inert gas, and water).
Key Features:
- - Valve Type: High-pressure, temperature-rated
- - Differential pressure range: 5 to 150 psi (air, inert gas, and water)
- - Coil: Included with watertight enclosure and Class F insulation
- - Electrical Specifications: 110V AC @ 50Hz, 120V AC @ 60Hz
- 6.9 W power consumption
- - Electrical Connections: Leaded coil with 1/2 in NPT threaded conduit adaptor
- - Connection Type: Inlet and outlet NPTF threads
- - Dimensions: 5-3/16 in length, 3-5/8 in height, 2-5/8 in width
- - Environmental Rating: Indoor with IP65 and NEMA 4X enclosure ratings
- - Valve Positions: 2-Position, Normally Closed starting configuration
- - Flow Coefficient (Cv): 7
- - Includes Seal: Yes, made of EPDM
- - Compliance Standards: UL, CSA, NSF 61, 169, 42, 372
