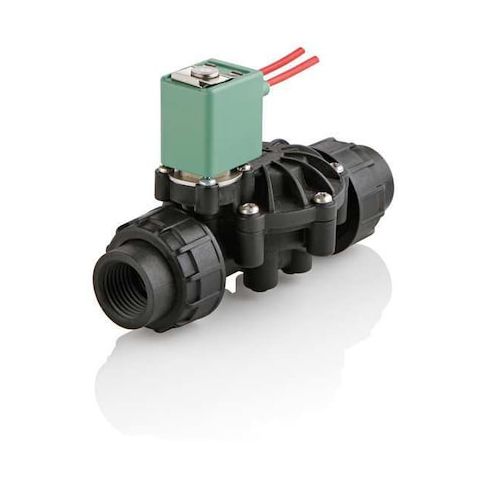

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 120V AC at 60HZ, Pilot Operated MPN:K212A044L1100F2

• The ASCO K212A044L1100F2 solenoid valve is a pilot-operated, 2-way/2-position valve designed to control the flow of water in conditioning and purification systems. Constructed with a polymide polyphenylene ether body and EPDM/TPE seals, it features an operating ambient temperature range: 32 to 120°F and rated for fluid temperatures up to 150°F. The valve comes in a normally open configuration with a 3/4 in orifice diameter and accommodates a nominal pipe size of 3/4 in. It includes a coil and sealing components for installation and features a NEMA 4X watertight enclosure rated for indoor, outdoor, and washdown use.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Open configuration
  • - Material: Valve body made of polymide polyphenylene ether
  • seals composed of EPDM and TPE
  • - Operating ambient temperature range: 32 to 120°F
  • rated for fluid temperatures up to 150°F
  • - Pressure Ratings: Operating differential pressure 5 to 120 psi for water
  • - Connections: NPTF inlet and outlet with NPT thread type
  • - Electrical: 120V AC @ 60 Hz, 11 W coil power consumption
  • leaded coil with 1/2 in NPT threaded conduit adaptor
  • - Physical Dimensions: 4-29/32 in length, 3-5/16 in height, 2-19/32 in width
  • - Enclosure and Environmental Ratings: NEMA 4X watertight enclosure rated for indoor, outdoor, and washdown use
  • - Compliance and Standards: UL, CSA, NSF 61, 169, 42, 372 certified
  • - mounting orientation: can be installed in either horizontal or vertical orientation
