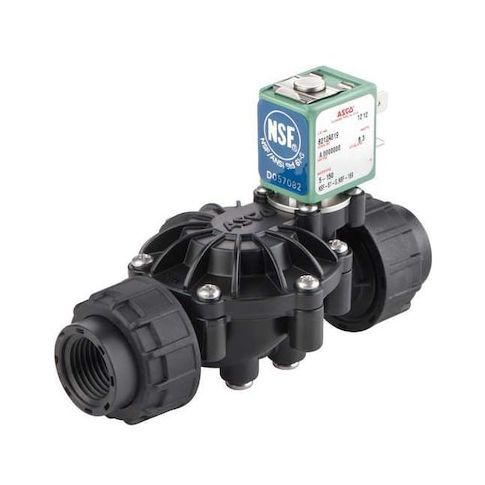

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 24V DC, Pilot Operated, EPDM MPN:8212A020S0100F1
This pilot-operated, normally open solenoid valve is designed for controlling water flow in water conditioning and purification systems, offering automated flow control with a flow coefficient of 4.5. Suitable for indoor environments, it operates at 24V DC and is rated for fluid temperatures up to 150°F. Its 2-way, 2-position configuration and 1/2 inch NPTF connections make it ideal for applications such as water treatment, laboratory, and medical facilities. The valve's high-pressure rating and NEMA 4X enclosure ensure reliable performance in demanding environments, making it a reliable choice for critical water flow control applications.
Top product features:
- Pilot-operated design for automated flow control
- 2-way, 2-position configuration for precise control of fluid flow
- EPDM seal material for resistance to chemicals and abrasion
Top product applications:
- Water conditioning systems
- Purification systems
- Laboratory water supply systems
The ASCO 8212A020S0100F1 is a pilot-operated, normally open solenoid valve designed for controlling water flow in water conditioning and purification systems. It features a 2-way, 2-position configuration with a 3/4 inch orifice diameter and 1/2 inch NPTF inlet and outlet connections. Valve body material: polyimide polyphenylene ether (per manufacturer specification). It operates at 24V DC with an 11W coil included. This valve provides automated flow control with a flow coefficient (Cv) of 4.5, suitable for indoor environments and rated for fluid temperatures up to 150°F.
Key Features:
- - Valve type: High-pressure, temperature-rated per specification
- - Seal Material: EPDM
- - Coil enclosure: NEMA 4X rated
- - Coil Insulation Class: F
- - Compliance: UL, CSA, NSF 61, 169, 42, 372
- - Electrical Connections: DIN
- - NEMA Enclosure Rating: 4X
- - Operating Pressure Differential: Minimum 5 psi
- Maximum 150 psi Air/Inert Gas, 120 psi Water
- - Maximum operating water pressure: 90 psi
- - Dimensions: Overall Height 3-5/16 in, Overall Length 4-29/32 in, Overall Width 2-5/8 in
- - Includes Seal and Coil
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 0.40
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
