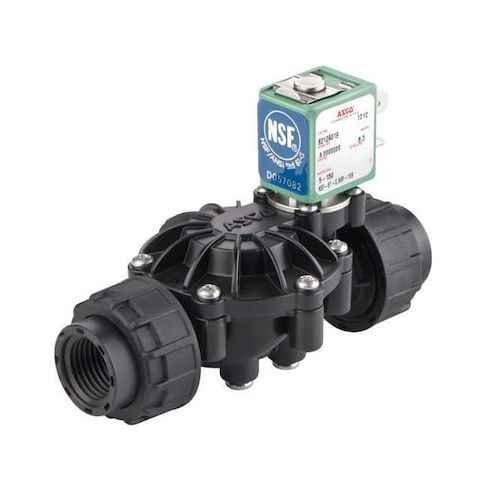

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 24V DC, Pilot Operated MPN:K212A044S0100F1

• The ASCO K212A044S0100F1 is a 2-way, 2-position pilot-operated solenoid valve intended for controlling water flow in water-conditioning and purification systems. It features a normally open starting configuration and operates within ambient temperature range 32°F to 120°F. The body material is Polyimide-polyphenylene ether, with seals from EPDM and TPE, and it handles water temperatures up to 150°F. This valve supports a nominal pipe size of 3/4 in and is rated for a maximum operating water pressure differential of 120 psi, with a minimum differential of 5 psi required for operation.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Open
  • - Body material: Polyimide-polyphenylene ether
  • - Seal Material: EPDM, TPE
  • - Media: Water
  • - Nominal Pipe Size: 3/4 in
  • - Operating Pressure Differential (Water): 5 psi minimum, 120 psi maximum
  • - Ambient temperature range: 32°F to 120°F
  • - Maximum Fluid Temperature: 150°F
  • - Flow Coefficient (Cv): 7
  • - Electrical: 24 V DC voltage, 11 W wattage, DIN electrical connections
  • - Coil enclosure: IP65 rated
  • insulation Class F
  • - Mounting Orientation: Horizontal or Vertical
  • - Environmental rating: Suitable for indoor, outdoor, and washdown environments
  • - NEMA Enclosure Rating: 4X
  • - IP Rating: IP65
  • - Compliance: UL, CSA, NSF 61, 169, 42, 372
  • - Includes Coil and Seal
  • - Overall Dimensions: Length 4-29/32 in, Width 2-19/32 in, Height 3-5/16 in
