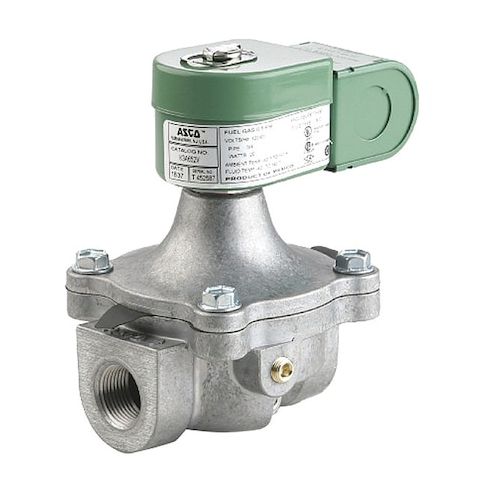

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120/60V AC, High Pressure, NBR MPN:K3A662V

• The ASCO K3A662V is a pilot-operated, normally closed solenoid valve designed for controlling commercial and industrial gas burners. It features a 1-inch nominal pipe size with NPTF inlet and outlet connections, and an orifice diameter ranging from 1 to 5/8 inches. Constructed with an aluminum body and NBR seal material, this valve operates within an ambient temperature range of -40°F to 160°F and can handle fluid temperatures up to 140°F. Fluid compatibility: fuel oil and gas media within the specified operating ranges. It operates at 120 V AC, 60 Hz.

  Key Features:

  • - Operation Type: Pilot Operated
  • - Valve Configuration: Normally Closed, 2-Position
  • - Valve Size: 1 in Nominal Pipe Size
  • - Valve Type: High Pressure, 2-Way
  • - Flow Capacity: Cv of 18.4
  • - Maximum Operating Pressure Differential: 5 psi Air/Inert Gas
  • - Materials: Aluminum Body, NBR Seal
  • - Electrical: 120 V AC, 60 Hz, coil rated at 20 W
  • coil included
  • - Coil Features: Class F insulation, general purpose enclosure with junction box, electrical connections via 7/8 in knockouts
  • - Physical Dimensions: 6-3/32 in height, 4 in length, 3-11/16 in width
  • - Mounting Orientation: Horizontal
  • - Response Time: 1 second
  • - Includes Seals: Yes
  • - Compliance: Certified to CSA, FM, UL standards
