Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, High Pressure, Temperature MPN:8212A019S0100F0

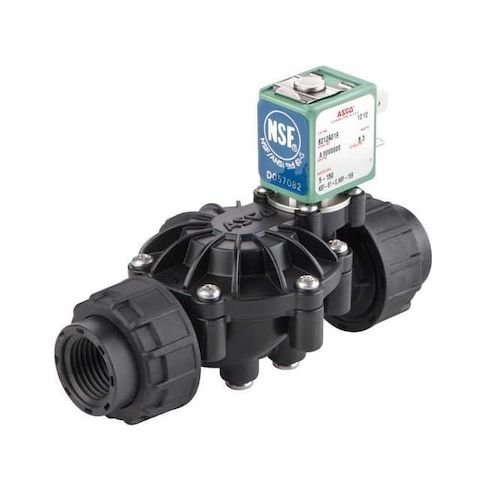

• The ASCO 8212A019S0100F0 Solenoid Valve is a pilot-operated, 2-way/2-position valve with a normally closed configuration. Intended use: Water conditioning and purification systems. Its valve body is made from Polymide Polyphenylene Ether. The valve incorporates a 3/4 inch orifice diameter and 1/2 inch NPTF inlet and outlet connections. It operates at voltages of 110-120 VAC at 50/60 Hz with a holding wattage of 6.9 W. Coil enclosure: IP65 rated

• NEMA 4X
• insulation: Class F
• electrical connection: DIN.

  Key Features:

  • - Valve Type: Pilot Operated, 2-Way/2-Position, Normally Closed
  • - Media Compatibility: Water
  • - Differential pressure range: 5 psi to 150 psi (water)
  • - Maximum Fluid Temperature: 150°F
  • - Body Material: Polymide Polyphenylene Ether
  • - Seal Material: EPDM
  • - Orifice Diameter: 3/4 in
  • - Connection Types: Inlet and Outlet NPTF thread, 1/2 in nominal pipe size
  • - Electrical: 110-120 VAC @ 50/60 Hz, 6.9 W wattage, DIN connection
  • - Coil enclosure rating: IP65
  • NEMA 4X
  • insulation: Class F
  • - Environmental Rating: Indoor use
  • - Includes: coil and seals
  • - Certifications: UL, CSA, NSF 61, 169, 42, 372
  • - Dimensions: Overall height 3-5/16 in, length 4-29/32 in, width 2-5/8 in
