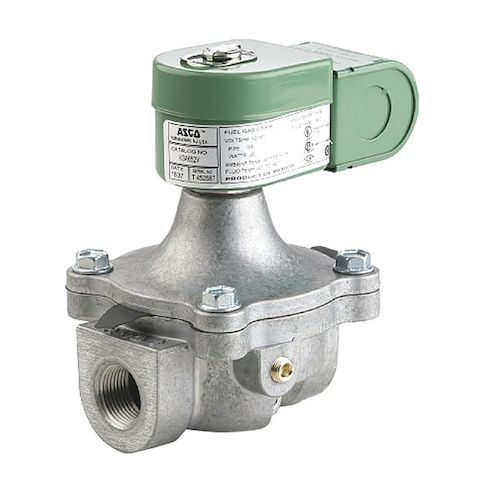

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/4 in Pipe Size, 120/60V AC, High Pressure MPN:K3A672V
The ASCO K3A672V solenoid valve is a reliable and efficient solution for controlling the flow of fuel oil and gas in commercial and industrial gas burner applications. Its normally closed configuration and high pressure rating make it ideal for use in a variety of settings, from indoor to outdoor environments. With a Cv of 32 and a gas capacity rated at 1,730,000 BtuH, this valve offers exceptional flow capacity and reliability. Suitable for use in applications such as oil and gas processing, power generation, and industrial manufacturing, the ASCO K3A672V is a trusted choice for professionals in the industry.
Top product features:
- The ASCO K3A672V is a 2-way, normally closed solenoid valve with an operating differential of 0 to 5 psi (air/inert gas).
- It controls the flow of fuel oil and gas in commercial and industrial gas burner applications.
- It features an integrated coil with Class H insulation rated for 120/60V AC power.
Top product applications:
- Commercial and industrial gas burner applications
- Fuel oil control in commercial and industrial settings
- Industrial gas control systems
The ASCO K3A672V is a 2-way, normally closed solenoid valve with an operating differential of 0 to 5 psi (air/inert gas). It controls the flow of fuel oil and gas in commercial and industrial gas burner applications. Constructed with an aluminum body and NBR seals, it includes an integrated coil with Class H insulation rated for 120/60V AC power. Environmental Rating: Suitable for indoor and outdoor use
- it accommodates a maximum fluid temperature of 140°F and ambient temperatures ranging from -40°F to 160°F. It features NPTF inlet and outlet connections with a nominal pipe size of 1-1/4 inches and a 1-5/8 inch orifice diameter.
Key Features:
- - Valve Type: 2-Way, Normally Closed configuration
- - Flow Capacity: Cv of 32
- Gas capacity rated at 1,730,000 BtuH
- - Operating differential: 0 to 5 psi (air/inert gas)
- - Electrical: 120/60V AC, 20 W wattage, 7/8 inch knockouts, coil enclosure with junction box
- - Material: Aluminum body with NBR seal material
- - Mounting Orientation: Horizontal installation recommended
- - Dimensions: Overall length 5 in, width 5-13/32 in, height 6-11/16 in
- - Environmental Rating: Suitable for indoor and outdoor use
- - Standards: CSA, FM, UL certified
- - Includes coil and seal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.60
- Package Width: 7.60
- Package Height: 6.20
- Package Weight: 4.30
