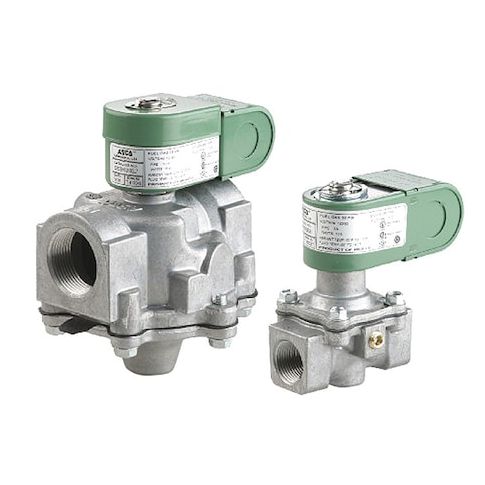

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/4 in Pipe Size, 120/60V AC, Vent, Aluminum MPN:S262SH02N3GJ7

• The ASCO S262SH02N3GJ7 is a 2-way, pilot-operated solenoid valve designed for control of commercial and industrial gas burners. It features a normally open vent valve type with an aluminum body and NBR seal material. The valve operates on 120/60V AC power with a coil wattage of 15.4 W and includes the coil and seals. Environmental rating: Indoor, Outdoor. Media: gas (air and inert gases) with a maximum fluid temperature of 140°F and a maximum operating pressure differential of 25 psi for air and inert gases. Ambient temperature range: -40°F to 160°F and a response time of 1 second.

  Key Features:

  • - Body Material: Aluminum
  • - Seal Material: NBR
  • - Valve Type: Vent
  • - Valve Ways: 2-Way
  • - Valve Starting Configuration: Normally Open
  • - Operation Type: Pilot Operated
  • - Nominal Pipe Size: 1-1/4 in
  • - Orifice Diameter: 1 to 5/8 in
  • - Coil Enclosure: General Purpose, With Junction Box
  • - Coil Insulation Class: F
  • - Electrical Connections: 7/8 in Knockouts
  • - Environmental rating: Indoor, Outdoor
  • - Frequency: 60 Hz
  • - Voltage: 120/60V AC
  • - Wattage: 15.4 W
  • - Operating Pressure Differential - Maximum: 25 psi Air/Inert Gas
  • - Operating Pressure Differential - Minimum: 0 psi
  • - Fluid Temperature - Maximum: 140°F
  • - Ambient temperature range: -40°F to 160°F
  • - Includes: Coil and Seal
  • - Response Time: 1 sec
  • - Gas Capacity: 1,941,100 BtuH
  • - Application: For Control of Commercial and Industrial Gas Burners
  • - Dimensions: Overall Height 6-3/4 in
  • Overall Length 5 in
  • Overall Width 5-3/8 in
  • - Pipe Center Size: 3-7/16 in
  • Inlet and Outlet Connection Type: NPTF
  • - Standards: CSA, FM, UL
  • - NEMA Enclosure Rating: 1
