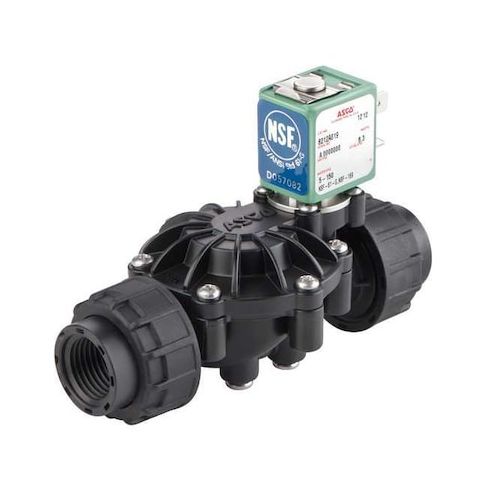

Solenoid Valve, 2-Way, 2-Position, Normally Open, 3/4 in Pipe Size, 120V AC at 60HZ, Pilot Operated MPN:K212A044S0100F2

• The ASCO K212A044S0100F2 is a pilot-operated, 2-way/2-position solenoid valve with a normally open starting configuration. It features a 3/4 in nominal pipe size and orifice diameter, and is designed for controlling water flow in systems such as water conditioning and purification. Body material: Polyphenylene ether (PPE) body with EPDM and TPE seals. It is rated for operation within ambient temperature range of 32°F to 120°F and is compatible with fluid temperatures up to 150°F. Operating differential pressure range: 5 psi to 120 psi for water.

  Key Features:

  • - Operation: Pilot Operated with 2-Way/2-Position valve design
  • - Starting Configuration: Normally Open
  • - Body material: Polyphenylene ether (PPE) body with EPDM and TPE seals
  • - Nominal Pipe Size and Orifice Diameter: 3/4 in
  • - Electrical: 120V AC @ 60 Hz, 11 W coil power, DIN electrical connections
  • - Coil Enclosure: Watertight with insulation class F
  • - Environmental suitability: indoor, outdoor, and washdown environments
  • protection ratings NEMA 4X and IP65
  • - Certifications: UL, CSA, NSF 61, 169, 42, 372
  • - Dimensions (L x W x H): 4-29/32 in x 2-19/32 in x 3-5/16 in
  • - Operating differential pressure range: 5 psi to 120 psi for water
  • - Includes: coil and seals
  • - Mounting: Can be installed horizontally or vertically
  • - Coefficient of Volume (Cv): 7
