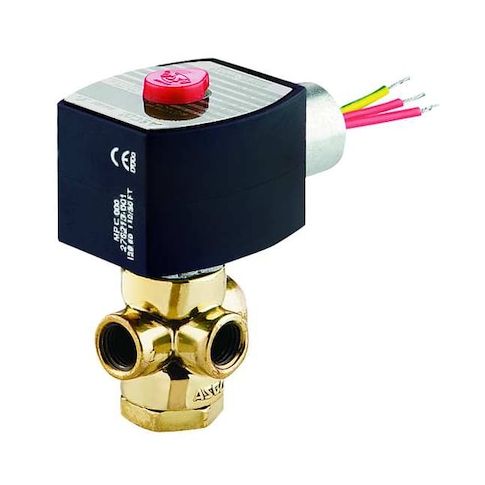

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Manual Operator, NBR MPN:8320G184MS

• The ASCO 8320G184MS is a direct-acting, normally closed solenoid valve designed for controlling the flow of liquids and gases. Constructed with a brass body and NBR seals. This valve includes an integrated coil and features an IP66-rated enclosure. NEMA ratings: 1, 2, 3, 3S, 4, 4X

• suitable for use in environments defined by those ratings, offering remote and automated flow control with a compact form factor that supports horizontal or vertical mounting orientations.

  Key Features:

  • - Valve Type: Direct Acting, Normally Closed, 3-Way, 2-Position
  • - Body Material: Brass with NBR (Buna-N) seal
  • - Nominal Pipe Size: 1/4 in
  • Orifice Diameter: 3/32 in
  • - Maximum Operating Pressure Differential: 150 psi for Air/Inert Gas, Light Oil, and Water
  • Minimum Differential: 0 psi
  • - Fluid Compatibility: Air, Inert Gas, Light Oil, Water
  • - Coil: Included
  • Wattage: 10.1 W
  • Electrical Connections: 1/2 in Conduit with 18 in Leads
  • Voltage: 120V AC
  • Frequency: 50 Hz, 60 Hz
  • Coil Insulation Class: F
  • - Enclosure: No junction box included
  • IP66-rated enclosure
  • NEMA ratings: 1, 2, 3, 3S, 4, 4X
  • - Mounting Orientation: Horizontal or Vertical
  • Dimensions: Overall Height 3-3/4 in, Overall Length 1-11/16 in, Overall Width 1-7/16 in
  • - Center Line Pipe Center Size: 1-3/4 in
  • Inlet and Outlet Connection Type: NPT
  • - Includes Seals: Yes
