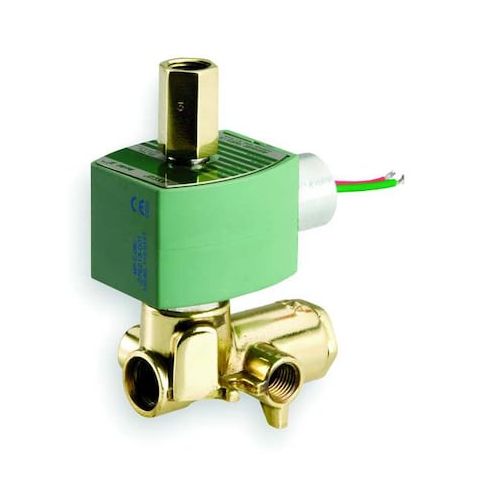

Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Pilot Operated, Brass MPN:8345G001MO
The ASCO 8345G001MO solenoid valve is a reliable and versatile solution for controlling flow paths in pneumatic or hydraulic systems. Suitable for use with air, inert gases, light oil, and water at temperatures up to 180°F, this 4-way/2-position valve features a brass body and NAMUR mount configuration. Its pilot-operated design and IP66-rated enclosure make it ideal for use in a variety of applications, including industrial automation, process control, and laboratory settings. With its compact size and robust construction, this valve is perfect for use in tight spaces and harsh environments, providing reliable and efficient control over fluid flow.
Top product features:
- Pilot-operated design for controlling flow paths in pneumatic or hydraulic systems
- 4-way/2-position valve configuration with NAMUR mount for precise flow control
- Brass body with orifice diameter of 1/16 inch for compatibility with various fluids at high temperatures
Top product applications:
- Pneumatic or hydraulic systems for controlling flow paths
- Industrial automation systems requiring precise flow control
- Hydraulic or pneumatic systems in hazardous locations
The ASCO 8345G001MO solenoid valve is a pilot-operated, 4-way/2-position valve designed for controlling flow paths in pneumatic or hydraulic systems. It features a brass body with an orifice diameter of 1/16 inch and is compatible with air, inert gases, light oil, and water at temperatures up to 180°F. This valve includes a coil and sealing components, with electrical connections via 1/2 inch conduit and 18-inch leads. It supports horizontal or vertical mounting orientations and features an IP66-rated enclosure suitable for indoor, outdoor, and hazardous locations.
Key Features:
- - Valve Design: 4-Way/2-Position with NAMUR mount configuration
- - Body Material: Brass construction
- - Orifice Diameter: 1/16 inch
- - Nominal Pipe Size: 1/4 inch with NPT thread type for inlet and outlet (NPTF connection type)
- - Operating Pressure Differential: 10 to 150 psi for air/inert gas, light oil, and water
- - Coil: Includes coil with 10.1 W power consumption, Class F insulation, and 120V AC at 60 Hz voltage rating
- - Electrical Connections: 1/2 inch conduit with 18-inch leads
- - Seal Material: NBR (Buna-N)
- - Environmental Rating: IP66-rated enclosure and NEMA ratings 1, 2, 3, 3S, 4, 4X
- - Mounting Orientation: Horizontal or Vertical
- - Dimensions: Overall length 2-1/16 inches
- width 3 inches
- height 4-11/16 inches
- - Includes: Coil and sealing components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 4.50
- Package Weight: 2.25
