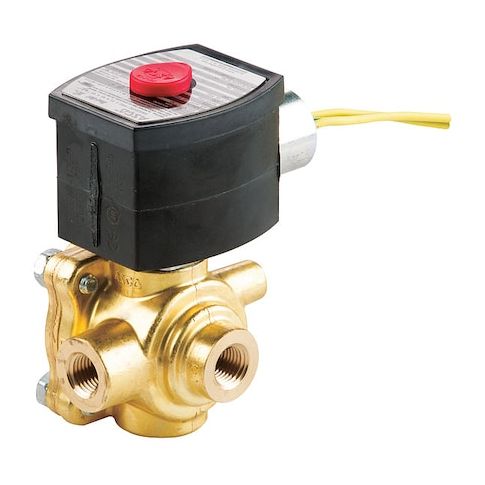

Solenoid Valve, 4-Way, 2-Position, Universal, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting MPN:EFHB8342G001

• The ASCO EFHB8342G001 is a direct-acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Constructed with a brass body and FKM seal

• Operating temperature ranges: ambient 32–125°F
• fluid temperature up to 160°F. The valve features a 1/4 inch nominal pipe size with NPTF inlet and outlet connections. Flow coefficient: Cv = 0.7. It operates at 120V AC with a coil insulation class H and includes the coil and seals. The valve’s 4-way, 2-position design with valve starting configuration: 4-way/2-position
• mounting orientation: horizontal or vertical accommodates both mounting orientations. Coil enclosure: Explosion-proof, watertight
• Environmental rating: Indoor and outdoor use.

  Key Features:

  • - Valve Type: NAMUR Mount, 4-Way/2-Position, Direct Acting
  • - Body Material: Brass with FKM seal
  • - Nominal Pipe Size: 1/4 in
  • Center Line Pipe Center Size: 2-1/2 in
  • - Connections: Inlet and Outlet NPTF thread type
  • - Operating Temperatures: Ambient 32 to 125°F
  • Fluid up to 160°F
  • - Operating Pressure Differential: Maximum 125 psi for air/inert gas, 100 psi for light oil and water
  • Minimum 0 psi
  • - Flow Capacity: Cv of 0.7 with a 3/16 in orifice diameter
  • - Electrical: 120V AC, 60 Hz supply frequency, 20.1 W coil wattage, Class H coil insulation
  • - Coil Enclosure: Explosion Proof, Watertight
  • Electrical Connections via 1/2 in conduit with 18 in leads
  • - Environmental Rating: Indoor, Outdoor use
  • - Includes: coil and seal
  • - Mounting Orientation: Horizontal or Vertical
  • - Dimensions: Overall Height 4-7/16 in
  • Length 2-5/8 in
  • Width 2-11/16 in
  • - Standards: CSA, UL Listed
