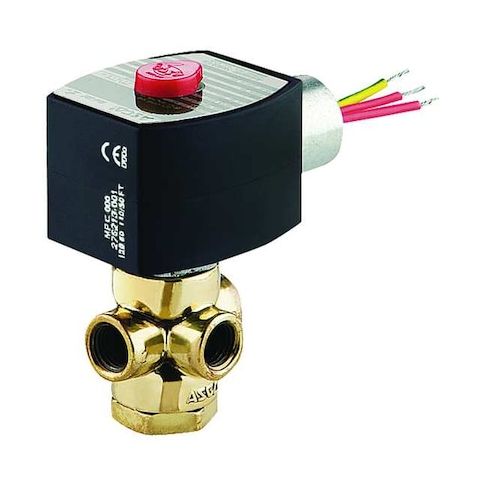

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Mount, Brass MPN:EF8320G182
The ASCO EF8320G182 Solenoid Valve is a reliable and efficient solution for controlling the flow of air, inert gases, light oil, and water in various industrial applications. Its direct-acting, normally closed design allows for precise control and reliable shut-off, while its three-way, two-position configuration enables flexible flow routing. Suitable for indoor and outdoor use, this valve operates at 120V AC and is certified to ATEX, CSA, IECEx, and UL standards, ensuring compliance with safety regulations. Ideal for use in HVAC, pneumatic systems, and water treatment applications, this valve provides a reliable and efficient solution for a wide range of industries.
Top product features:
- The valve has a three-way, two-position design allowing for flow routing through distinct ports.
- The valve is normally closed, meaning it blocks flow until actuated by the solenoid coil.
- The valve operates at 120V AC with a coil wattage of 17.1 W, allowing for reliable and efficient operation.
Top product applications:
- Air Compressor Systems
- Process Control Systems
- Hydraulic Systems
The ASCO EF8320G182 is a direct-acting, normally closed solenoid valve designed to control the flow of air, inert gases, light oil, and water. It features a three-way, two-position valve design housed in a brass body, allowing for flow routing through distinct ports. It supports horizontal or vertical mounting orientations and includes the solenoid coil and seal for operation. The valve operates at 120V AC with a coil wattage of 17.1 W and has an Ex-certified coil enclosure compliant with ATEX/IECEx standards, rated for indoor and outdoor use.
Key Features:
- - Valve Type: Direct Mount, Direct Acting, Normally Closed
- - Valve Configuration: 3-Way/2-Position with 2-Position operation
- - Materials: Brass body with NBR seal material
- - Connections: Inlet and outlet ports with NPTF threads
- nominal pipe size 1/4 in
- - Dimensions: Overall height 3-3/4 in, length 1-11/16 in, width 1-7/16 in, center line pipe size 1-13/16 in
- - Flow Performance: Coefficient of Volume (Cv) 0.09
- orifice diameter 1/16 in
- - Pressure Ratings: Maximum operating pressure differentials of 210 psi for air/inert gas and 225 psi for light oil and water
- minimum differential pressure 0 psi
- - Electrical: 120V AC voltage, 17.1 W coil wattage, coil insulation class F, frequency 50 Hz and 60 Hz
- - Installation: Horizontal or vertical mounting orientation allowed
- - Environmental Rating: Suitable for indoor and outdoor use
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Standards: Certified to ATEX, CSA, IECEx, and UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 1.65
