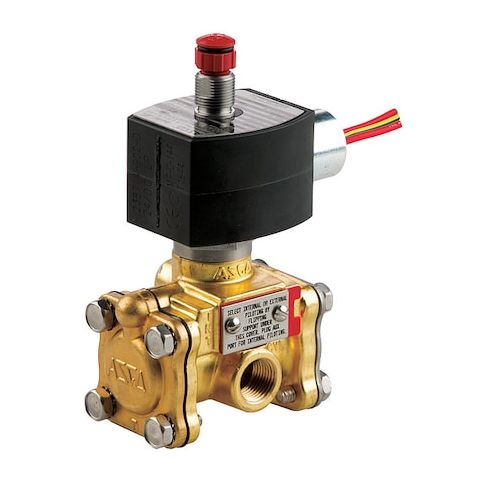

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Diaphragm Poppet, NBR MPN:EF8316G302
The ASCO EF8316G302 is a reliable 3-way, 2-position diaphragm poppet solenoid valve designed for automated control of air, inert gases, and liquids in industrial pneumatic and hydraulic systems. Its normally closed, direct acting operation ensures precise flow control, while its brass body and NBR seal material provide durability and resistance to corrosion. Suitable for a wide range of applications, including fluid control, pressure regulation, and flow management, this valve offers efficient and reliable performance in demanding environments. Ideal for use in industries such as manufacturing, oil and gas, and aerospace, it ensures precise control and minimizes downtime.
Top product features:
- The valve is a 3-way, 2-position diaphragm poppet solenoid valve.
- The valve features a normally closed, direct acting operation.
- The valve includes a coil and sealing components.
Top product applications:
- Automated control of the flow of air, inert gases, and liquids in industrial pneumatic systems
- Automated fluid control in industrial hydraulic systems
- Automated control of fluid flow in industrial applications where a 3-way, 2-position valve is required
The ASCO EF8316G302 is a 3-way, 2-position diaphragm poppet solenoid valve intended for automated control of the flow of air, inert gases, and liquids. It features a normally closed, direct acting operation that uses an energized coil to move a plunger, opening or closing the flow path. Constructed with a brass body and NBR seal material, this valve includes the coil and sealing components required for installation and operation. Intended for automated fluid control in industrial pneumatic and hydraulic systems.
Key Features:
- - Valve Type: Diaphragm Poppet
- - Valve Ways/Positions: 3-Way, 2-Position
- - Operation Type: Direct Acting, Normally Closed
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
- - Center Line Pipe Size: 2-7/8 in
- - Orifice Diameter: 5/16 in
- - Coefficient of Volume (Cv): 1.8
- - Operating Pressure Differential: Minimum 15 psi
- Maximum 150 psi for air/inert gas
- - Fluid Temperature Maximum: 140°F
- - Electrical: 24V DC voltage, 0.55 W power consumption
- coil enclosure rated explosion proof and watertight with Class F insulation
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Dimensions: Overall Length 3-1/4 in
- Overall Height 5-1/2 in
- Overall Width 2-1/16 in
- - Includes: Coil and seal
- - Standards: CE, CSA certified
- - NEMA Enclosure Ratings: 3, 3S, 4, 4X, 6, 6P, 7, 9
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.25
- Package Height: 6.00
- Package Weight: 3.35
