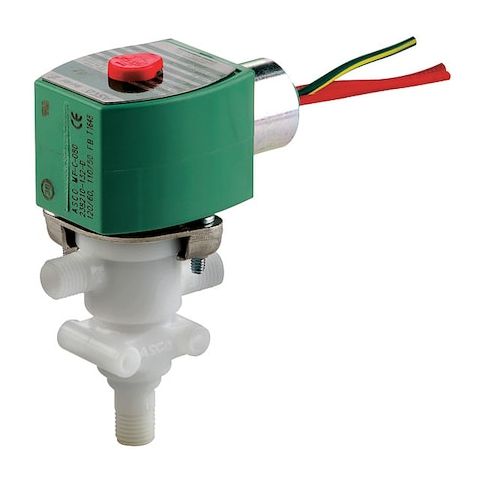

Solenoid Valve, 3-Way, 2-Position, Universal, 1/4 in Pipe Size, 120V AC, General Service, Plastic MPN:8360G071

The ASCO 8360G071 is a direct acting, 3-way/2-position solenoid valve designed for controlling the flow of water and air or inert gases. Constructed with a plastic body and NBR seals, it is compatible with operation in both horizontal and vertical mounting orientations. This valve includes a coil and sealing components, actuated by an energized solenoid to move an internal plunger and regulate fluid passage. It operates at 120V AC and 60 Hz with a coil wattage of 9.1 W and features a watertight coil enclosure without a junction box.

Key Features:

• - Valve Design: 3-Way/2-Position with 2-Position actuator
• - Nominal Pipe Size: 1/4 in
• - Orifice Diameter: 1/16 in
• - Maximum Operating Pressure Differential: 100 psi for air/inert gas and water
• - Minimum Operating Pressure Differential: 0 psi for air/inert gas and water
• - Maximum Fluid Temperature: 130°F
• - Body Material: Plastic
• - Seal Material: NBR (Buna-N)
• - Coil Enclosure: Watertight, without Junction Box
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Coil Insulation Class: F
• - Overall Dimensions: Length 2-1/4 in, Height 4-3/8 in, Width 1-15/16 in
• - Includes: Coil and Seal
• - Frequency: 60 Hz
• - Operating Voltage: 120V AC
• - Power Consumption: 9.1 W
• - Application: Damper Control, Water Applications
• - Standards: UL Listed
