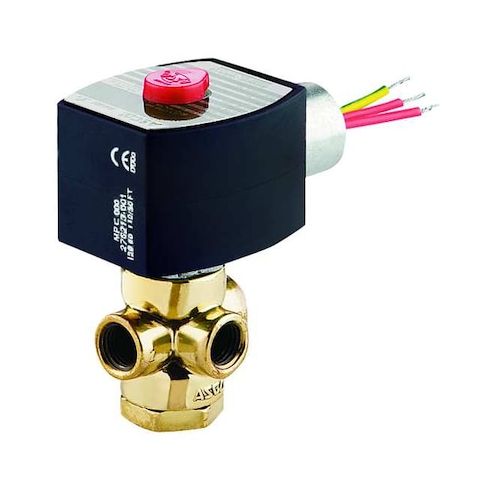

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 120V AC, Direct Mount, Brass MPN:EF8320G176

• The ASCO EF8320G176 is a 3-way, 2-position direct-acting solenoid valve with media compatibility: air, inert gases, light oil, and water within specified operating limits (0–50 psi differential

• maximum fluid temperature 200°F). Constructed with a brass body and NBR seals, this valve is configured with a 1/4 inch nominal pipe size and uses NPTF threaded inlet and outlet connections. Starting position is configurable during installation and can be mounted horizontally or vertically. Coil enclosure rated as explosion-proof and watertight with Class F insulation and features electrical connections via 1/2 inch conduit with 18-inch leads. It is rated for indoor and outdoor environments and operates on 120V AC power with a wattage of 17.1 W.

  Key Features:

  • - Valve Type: Direct Mount, direct-acting operation
  • - Valve Design: 3-Way/2-Position, with 2 discrete positions
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1/4 in
  • - Orifice Diameter: 1/8 in
  • - Connection Types: NPTF inlet and outlet thread
  • - Center Line Pipe Size: 1-13/16 in
  • - Operating Pressure Differential: 0 to 50 psi for air/inert gas, light oil, and water
  • - Maximum Fluid Temperature: 200°F
  • - Electrical: 120V AC, 17.1 W coil power, 50 Hz and 60 Hz frequency support
  • - Coil Enclosure: Coil enclosure rated as explosion-proof and watertight with Class F insulation
  • - Environmental Rating: Indoor and Outdoor use
  • - Mounting Orientation: Horizontal or Vertical
  • - Includes: Coil and sealing components
  • - Overall Dimensions: Height 3-3/4 in, Length 1-11/16 in, Width 1-7/16 in
