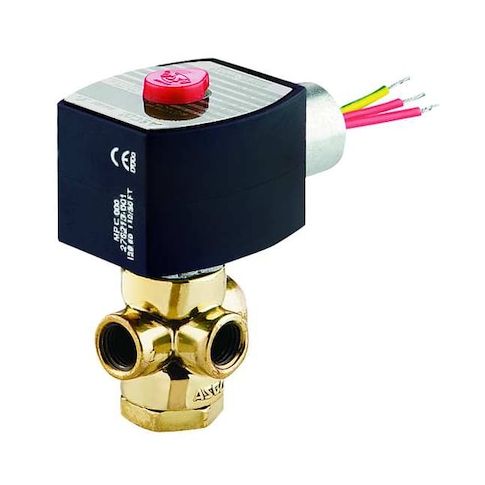

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Mount, Brass MPN:8320G089
The ASCO 8320G089 3-way/2-position solenoid valve is a reliable and efficient solution for various applications, including pneumatic and hydraulic systems, water treatment, and industrial processes. Its direct-acting design and normally closed configuration enable precise control and quick response times, while its brass body and NBR seals ensure durability and resistance to corrosion. With a wide range of media compatibility and operating pressure differential, this valve is suitable for use in harsh environments. Its compact design and direct mount feature make it ideal for space-constrained installations, providing a cost-effective and reliable solution for a variety of industrial applications.
Top product features:
- Direct-acting operation allows for fast and reliable valve response.
- The valve supports both horizontal and vertical mounting orientations.
- The valve features BSPP threaded inlet and outlet connections for secure and leak-resistant connections.
Top product applications:
- Air Compressor Systems
- Water Treatment and Filtration Systems
- Automotive and Industrial Air Pressure Systems
The ASCO 8320G089 is a direct-acting, 3-way/2-position solenoid valve with a normally closed starting configuration. The valve body is made of brass and it includes the coil and sealing components necessary for operation. The valve supports horizontal or vertical mounting and features BSPP threaded inlet and outlet connections.
Key Features:
- - Valve Design: 3-Way/2-Position with Normally Closed configuration
- - Operation Type: Direct Acting
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Maximum Fluid Temperature: 200°F
- - Operating Pressure Differential: 0 to 110 psi for Air/Inert Gas, Light Oil, and Water
- - Coefficient of Volume (Cv): 0.12
- - Orifice Diameter: 3/32 in
- - Body Material: Brass
- - Seal Material: NBR (Buna-N)
- - Electrical: 120V AC at 50/60 Hz, 9.1 W wattage, with 1/2 in conduit and 18 in leads
- - Coil Enclosure: IP66-rated watertight
- no external junction box required
- - Environmental Rating: Indoor and Outdoor use
- - IP Rating: 66
- - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
- - Dimensions: Length 1-11/16 in, Width 1-7/16 in, Height 3-3/4 in
- - Mounting Orientation: Horizontal or Vertical
- - Includes: Coil and seal components
- - Thread Type: BSPP for inlet and outlet connections
- - Valve Type: Direct Mount
- - Pipe Size: 1/4 in nominal, with 1-3/4 in centerline pipe center size
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 1.35
