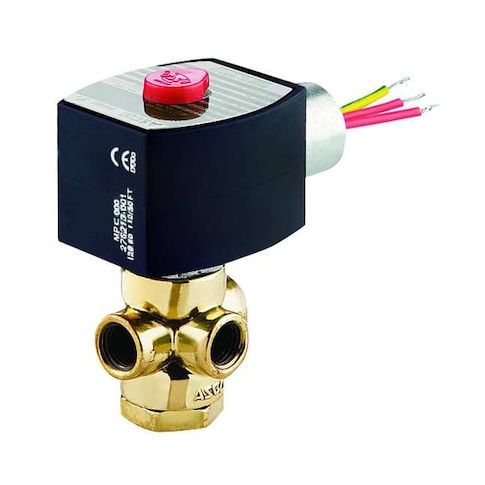

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Mount, NBR MPN:EF8320G203
The ASCO EF8320G203 is a versatile and reliable 3-way/2-position solenoid valve designed for use in industrial process and control applications. Suitable for air, inert gases, light oil, and water, this valve offers a normally closed configuration and direct acting operation. Its stainless steel body and NBR seals ensure durability and resistance to corrosion. With a compact design and explosion-proof coil enclosure, this valve is ideal for use in harsh environments. Its versatility and reliability make it a great fit for applications in manufacturing, oil and gas, and water treatment, among others, where precise control and safety are paramount.
Top product features:
- Direct acting operation allows for fast and reliable switching of fluid flow.
- The valve features a stainless steel body for durability and resistance to corrosion.
- The electromagnetic coil is explosion-proof, ensuring safe operation in hazardous environments.
Top product applications:
- Industrial process/control applications
- Air and gas handling systems
- Water treatment and distribution systems
The ASCO EF8320G203 is a direct acting, normally closed 3-way/2-position solenoid valve rated for use with air, inert gases, light oil, and water. It features a stainless steel body and is intended for use with air, inert gases, light oil, and water in industrial process/control applications. Actuation via the included electromagnetic coil
- mounting orientation: horizontal or vertical.
Key Features:
- - Valve Design: 3-Way/2-Position, Normally Closed configuration
- - Operation Type: Direct Acting
- - Body Material: Stainless Steel
- - Connection Thread Type: BSPP inlet and outlet
- - Nominal Pipe Size: 1/4 in
- Center Line Pipe Center Size: 1-3/4 in
- - Orifice Diameter: 1/8 in
- - Seal Material: NBR (Buna-N)
- - Coil Enclosure: explosion-proof
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Voltage: 120V AC
- Frequency: 50 Hz, 60 Hz
- - Wattage: 11.6 W
- - Operating Pressure Differential: 0 to 60 psi for air, inert gases, light oil, and water
- - Fluid Temperature Maximum: 150°F
- - Includes Coil and Seal
- - Environmental Rating: designed for indoor and outdoor use
- - Mounting Orientation: Horizontal or Vertical
- - Overall Dimensions: Height 3-3/4 in, Length 1-7/16 in, Width 1-7/16 in
- - Standards: ATEX, CSA, IIECEx, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 2.00
- Package Weight: 1.75
