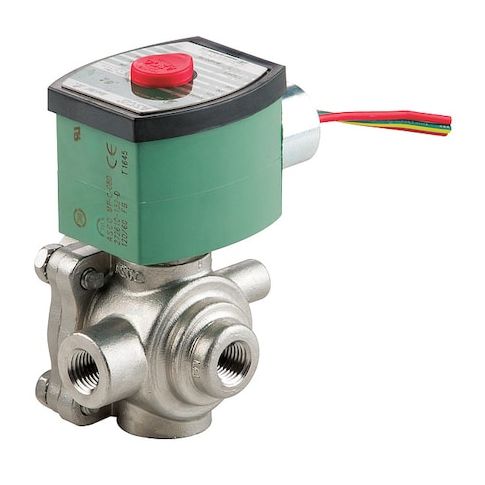

Solenoid Valve, 4-Way, 2-Position, Universal, 1/4 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting MPN:8342G701
The ASCO 8342G701 Solenoid Valve is a versatile and reliable solution for controlling fluid flow in a variety of applications. Suitable for use with air, inert gas, light oil, or water, this direct acting, 4-way/2-position valve features a NAMUR mount design and is constructed with a stainless steel body and PTFE seals for durability and resistance to corrosion. With a wide range of operating conditions and a compact design, this valve is ideal for use in industrial, commercial, and laboratory settings, including HVAC, process control, and medical equipment applications, where precise control and reliability are essential.
Top product features:
- Direct acting solenoid valve controls the flow of air, inert gas, light oil, or water by using an energized coil to move the valve's plunger or poppet.
- The valve features a NAMUR mount design, allowing for horizontal or vertical mounting orientations.
- The valve includes a stainless steel body and PTFE seals, providing corrosion resistance and ensuring a reliable seal.
Top product applications:
- Air Compressor System
- Automated Water Treatment Systems
- Industrial Process Control Systems
The ASCO - 8342G701 is a direct acting, 4-way/2-position solenoid valve featuring a NAMUR mount design. Constructed with a stainless steel body and PTFE seals, it controls the flow of air, inert gas, light oil, or water by using an energized coil to move the valve's plunger or poppet. Fluid compatibility: air, inert gas, light oil, or water. Standard coil configuration provided. Mounting orientations: horizontal or vertical.
Key Features:
- - Nominal Pipe Size: 1/4 in
- - Center Line Pipe Center Size: 3 in
- - Orifice Diameter: 3/16 in
- - Operating Pressure Differential (Maximum): 125 psi for Air/Inert Gas
- 100 psi for Light Oil and Water
- - Operating Pressure Differential (Minimum): 0 psi across Air/Inert Gas, Light Oil, and Water
- - Fluid Temperature Maximum: 160°F
- - Ambient Temperature Range: 32°F to 125°F
- - Electrical Voltage: 120V AC at 60 Hz
- - Wattage: 20.1 W
- - Coil Insulation Class: F
- - Coil Enclosure: Watertight, without junction box
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Environmental Rating: Indoor, Outdoor
- - NEMA Enclosure Rating: 1, 2, 3, 3S, 4, 4X
- - Inlet/Outlet Connection Type: NPTF Thread with NPT Thread Type
- - Seal Material: PTFE
- - Includes Coil and Seal
- - Dimensions: Overall Height 4-7/16 in
- Overall Length 2-1/16 in
- Overall Width 1-15/16 in
- - IP Rating: 66
- - Standards: CSA, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.25
- Package Width: 2.00
- Package Height: 4.50
- Package Weight: 2.55
