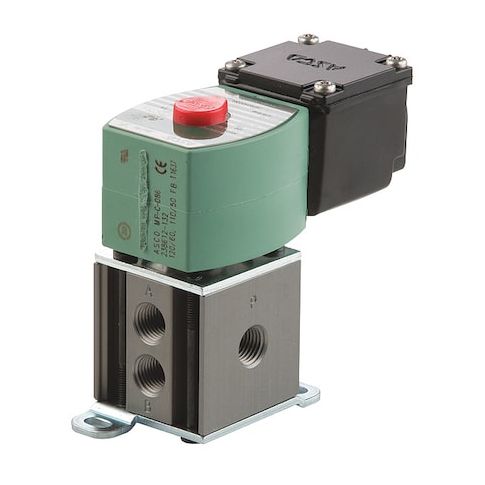

Solenoid Valve, 4-Way, 2-Position, 1/4 in Pipe Size, 120V AC, Inline Single, Aluminum, PE MPN:JSP8340G001

• The ASCO JSP8340G001 is a 4-way, 2-position solenoid valve designed to control the flow of air and inert gases by using an coil to actuate the valve mechanism. Constructed with an aluminum body and equipped with a PE seal, it operates with a nominal pipe size of 1/4 inch and a valve orifice diameter of 1/16 inch. This valve offers a coefficient of volume (Cv) of 0.1 and can handle a maximum fluid temperature of 130°F. Its electrical coil includes an IP66-rated junction box enclosure, operates at 120V AC with a wattage of 17.1 W, and has a thermal insulation class F. The product provides IP66-rated environmental protection against dust and water ingress.

  Key Features:

  • - Valve Design: 4-Way/2-Position
  • - Body Material: Aluminum
  • - Seal Material: PE (polyethylene)
  • - Nominal Pipe Size: 1/4 in
  • - Orifice Diameter: 1/16 in
  • - Coefficient of Volume (Cv): 0.1
  • - Maximum Fluid Temperature: 130°F
  • - Operating Pressure Differential: 0 to 150 psi for Air/Inert Gas
  • 0 to 145 psi for Light Oil
  • - Electrical Connections: Spade Terminal
  • - Coil Enclosure: IP66-rated junction box enclosure
  • - Coil Insulation Class: F
  • - Voltage: 120V AC
  • - Wattage: 17.1 W
  • - Environmental Rating: Indoor, Outdoor
  • - IP Rating: 66
  • - Includes: Coil and Seal
  • - Standards: UL Listed
  • - Overall Dimensions: Length 1-15/16 in, Width 1-15/16 in, Height 4-1/8 in
  • - Valve Type: Inline Single
