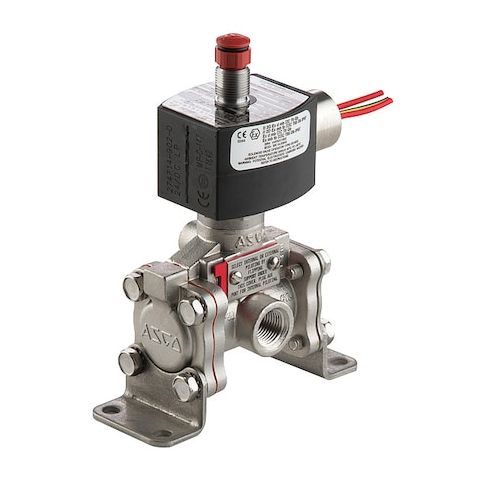

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Diaphragm Poppet, NBR MPN:EVX8316G382MB17596

• The ASCO EVX8316G382MB17596 is a 3-way, 2-position solenoid valve designed for use with air, inert gases, and liquids. It operates as a normally closed, direct-acting valve with a diaphragm poppet design to control fluid flow. The valve includes the coil and sealing components required for operation and is constructed from 316 stainless steel with Environmental Rating: Hazardous, Indoor, Outdoor. It is compatible with systems requiring precise flow control at operating pressures ranging from a minimum differential of 15 psi to a maximum differential of 150 psi for air and inert gases, with a maximum fluid temperature of 140°F.

  Key Features:

  • - Valve Design: 3-Way/2-Position with Normally Closed configuration
  • - Body Material: 316 Stainless Steel
  • - Operation Type: Direct Acting
  • - Valve Type: Diaphragm Poppet
  • - Nominal Pipe Size: 3/8 in
  • Center Line Pipe Size: 2-7/8 in
  • - Orifice Diameter: 5/16 in
  • Flow Coefficient (Cv): 3.97
  • - Maximum Fluid Temperature: 140°F
  • - Operating Pressure Differential: 15 psi minimum, 150 psi maximum (Air/Inert Gas)
  • - Seal Material: NBR (Buna-N)
  • - Coil Enclosure: Explosion Proof, Watertight
  • - Coil Insulation Class: F
  • - Voltage: 24V DC
  • Wattage: 1.4 W
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Inlet and Outlet Connection Type: NPTF with NPT Thread Type
  • - Environmental Rating: Hazardous, Indoor, Outdoor
  • - Dimensions: Overall Height 6 in
  • Overall Length 2-1/16 in
  • Overall Width 3-1/4 in
  • - Includes Coil and Seal
