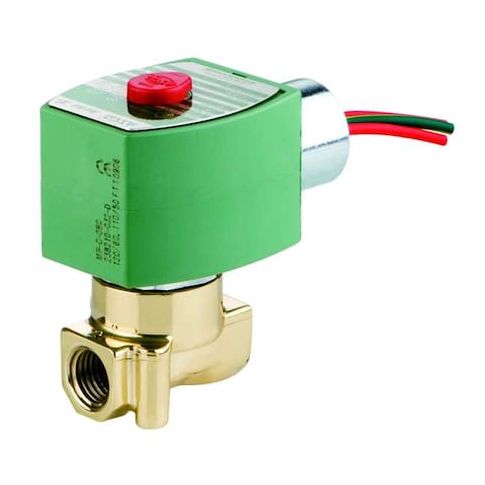

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/4 in Pipe Size, 120V AC, High Flow, Brass, NBR MPN:8262H263

• The ASCO 8262H263 Solenoid Valve is a direct-acting, normally open 2-way/2-position valve designed for controlling the flow of air, inert gas, light oil, and water. Constructed with a brass body and equipped with an NBR seal, it operates with a coil included and features an enclosure designed to resist moisture intrusion

• no junction box included. The valve supports horizontal or vertical mounting and functions at ambient temperatures ranging from -13°F to 131°F, with fluid temperatures up to 180°F.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Open configuration
  • - Operation Type: Direct Acting
  • - Nominal Pipe Size: 1/4 in
  • Center Line Pipe Center Size: 2-1/2 in
  • - Connection Types: NPTF inlet and outlet connections
  • thread type NPT
  • - Coil: Includes coil, insulation class F, with 120V AC voltage and 10.1 W wattage
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
  • NEMA Enclosure Ratings 1, 2, 3, 3S, 4, 4X
  • - Flow Characteristics: Coefficient of Volume (Cv) 0.54
  • Orifice Diameter 5/32 in
  • - Operating Pressure Differential: 0 to 90 psi for air/inert gas and water
  • 0 to 70 psi for light oil
  • - Physical Dimensions: Overall Height 3-1/8 in
  • Overall Length 1-9/16 in
  • Overall Width 2-1/16 in
  • - Response Time: 1 second
