Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 110V AC, 120V AC, High Flow MPN:8262H002V1V 120/60, 110/50

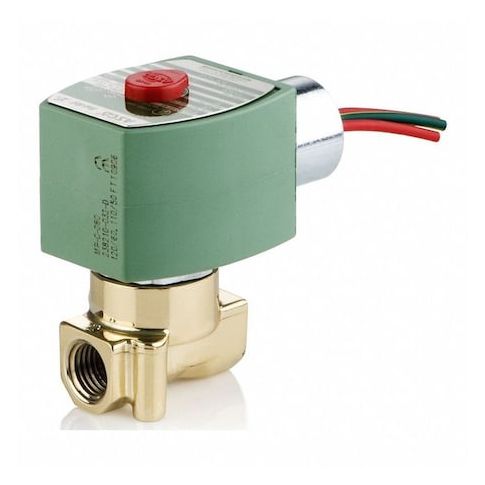

• The ASCO 8262H002V1V is a direct acting, 2-way solenoid valve with a normally closed starting configuration. It features a brass body construction and is designed to operate at nominal voltages of 110V AC (50 Hz) or 120V AC (60 Hz). The valve is rated for control of fuel oil and gas within its specified operating temperature and pressure ranges, with a maximum fluid temperature rating of 180°F. It can be mounted horizontally or vertically, providing flexibility in installation. The valve is suitable for industrial use within the product's rated media compatibility, temperature, and pressure ranges.

  Key Features:

  • - Valve Type: Direct Acting
  • - Valve Position: 2-Position, Normally Closed
  • - Body Material: Brass
  • - Nominal Pipe Size: 1/8 in with 1/8 in Orifice Diameter
  • - Connection Types: Inlet and Outlet NPTF threads
  • - Operating Pressure Differential Maximums: 185 psi (Air/Inert Gas and Water), 120 psi (Light Oil)
  • - Operating Pressure Differential Minimums: 0 psi for Air/Inert Gas, Light Oil, and Water
  • - Coil Included: Yes, with F Class Insulation and 6.1 W Wattage
  • - Electrical Connections: 1/2 in Conduit Hub
  • - Coil Enclosure: Without Junction Box, Watertight
  • - Ambient Temperature Minimum: -13°F
  • - Seal Material: FKM
  • - Environment: Indoor or outdoor use within the product's rated operating conditions
  • - Response Time: 1 second
  • - Overall Dimensions: Height 2-27/32 in
  • Width 1-11/16 in
