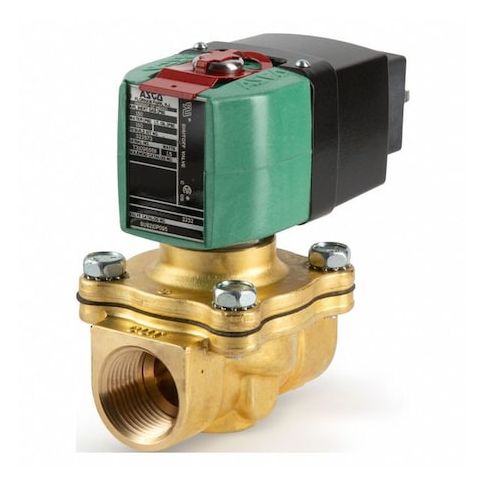

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 100V to 240V AC/DC, Brass MPN:SU8210P022 100-240

• The ASCO - SU8210P022 100-240 is a solenoid valve designed for controlling the flow of air, liquids, and gases in various industrial and equipment systems. It operates as a normally closed, pilot-operated valve with a Flow capacity: Cv 22.5 and Port configuration: 2-way valve. This valve includes an coil and Mounting orientation: Vertical

• Rated for operation at 100-240 V AC/DC, 60 Hz.

  Key Features:

  • - Valve Type: High Flow, Pilot Operated
  • - Valve Positions: 2-Position, Normally Closed
  • - Flow Capacity: Cv 22.5
  • - Orifice diameter: 1-1/4 in
  • - Connection Type: NPT inlet and outlet, 1-1/2 in nominal pipe size
  • - Electrical Connections: DIN with 1/2 in Conduit Hub
  • - Coil power: 1.5 W
  • - Operating Conditions: Ambient temperature 14°F to 140°F
  • fluid temperature up to 180°F
  • - Operating Pressure Differential: Minimum 5 psi
  • Maximum 350 psi (Air/Inert Gas), 150 psi (Water), 100 psi (Light Oil)
  • - Seal Material: NBR
  • - Mounting orientation: Vertical
  • - Response Time: 1 sec
  • - Standards: UL Listed
