Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 110V AC, 120V AC, High Flow MPN:8210G001LF 120/60, 110/50

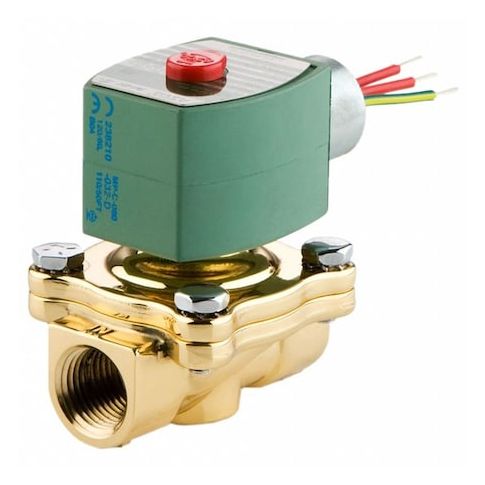

The ASCO 8210G001LF is a pilot-operated solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It operates with a normally closed valve position and features an orifice diameter of 5/8 inch. The valve provides automated control in pneumatic and hydraulic systems with a 2-way flow path. It is built with a brass body and NBR seal material, and includes the coil necessary for operation.

Key Features:

• - Operating Voltage: 110/120 V AC at 50/60 Hz
• - Coil Power Consumption: 6.1 W
• - Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
• - Operating Pressure Differential: 5 to 350 psi (Air/Inert Gas), 5 to 135 psi (Light Oil), 5 to 150 psi (Water)
• - Ambient Temperature Range: 14 to 140 °F
• - Response Time: 1 sec
• - Mounting Orientation: Vertical
• - Electrical Connections: 1/2 in conduit hub
• - Environmental Rating: Indoor and outdoor use
• - Valve Positions: 2-position (open/closed)
• - Standards: UL Listed
