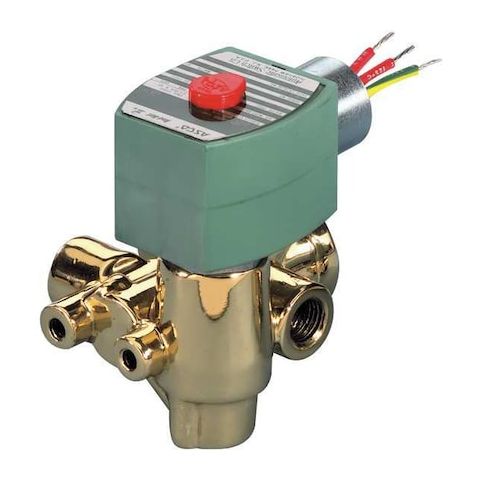

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass MPN:8321G001120/60, 110/50DA
Free Shipping
In Stock
The ASCO 8321G001120/60,110/50DA solenoid valve is a reliable and efficient solution for controlling the flow of air, inert gas, light oil, and water in various industrial applications. Its quick exhaust design ensures fast switching times, while its brass body and NBR seals provide durability and resistance to corrosion. Suitable for use in harsh environments, this valve meets ATEX, CSA, and IEC Ex Zone 1-21 standards. Ideal for use in manufacturing, chemical processing, and water treatment plants, this valve offers precise control and long-lasting performance, making it an excellent choice for applications requiring high reliability and efficiency.
Top product features:
- The valve features a quick exhaust design to minimize pressure drop and reduce fluid waste.
- The solenoid coil operates at 120V AC, 50/60 Hz, with a power consumption of 6.1 W.
- The valve is designed for horizontal or vertical mounting orientations, providing flexibility in installation and use.
Top product applications:
- Air Compressor Systems
- Industrial Process Control
- Water Treatment Plants
The ASCO 8321G001120/60,110/50DA is a pilot-operated, normally closed solenoid valve designed to control the flow of air, inert gas, light oil, and water. It features a brass body and operates with a single air pilot actuator. The valve supports horizontal or vertical mounting orientations and is rated for operation with air, inert gas, light oil, and water within the specified pressure differential (minimum 10 psi for light oil
- maximum 200 psi for air/inert gas/light oil/water) and maximum fluid temperature of 180°F. It includes the solenoid coil and necessary seals for installation and operation.
Key Features:
- - Valve Type: Quick Exhaust, 3-Way, 2-Position configuration
- - Body Material: Brass construction
- - Connections: NPTF inlet and outlet with 1/4 in nominal pipe size
- - Orifice Diameter: 9/32 in
- - Flow Coefficient (Cv): 0.8
- - Operating Pressure Differential: 10 psi minimum (Light Oil)
- 200 psi maximum (Air/Inert Gas, Light Oil, Water)
- - Maximum Fluid Temperature: 180°F
- - Coil: Included, 120V AC, 50/60 Hz, 6.1 W power consumption, Class F insulation
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Coil Enclosure: Watertight, without junction box
- - Environmental Rating: Indoor and outdoor use with IP66 protection
- - Seal Material: NBR (Buna-N)
- - Dimensions: Overall length 3-1/8 in
- height 3-15/16 in
- width 2-1/2 in
- - Mounting Orientation: Horizontal or vertical
- - Standards: ATEX, CSA, IEC Ex Zone 1-21, SIL, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.10
- Package Height: 5.10
- Package Weight: 2.15
