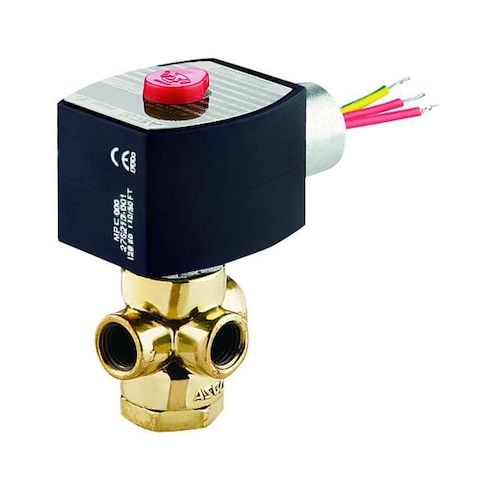

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 24V DC, Direct Mount, Brass, NBR MPN:EF8320G17424/DCDD
The ASCO EF8320G17424/DCDD is a reliable and versatile 3-way, 2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water in a variety of applications. Its direct acting design and configurable starting position make it suitable for use in both horizontal and vertical orientations, while its operating pressure differential of 0 to 100 psi ensures reliable performance in a range of environments. Ideal for use in industrial, commercial, and residential settings, this valve is perfect for applications such as HVAC systems, water treatment, and oil and gas processing.
Top product features:
- The valve features a configurable starting position.
- The valve is designed for direct mounting.
- The valve operates up to a maximum fluid temperature of 200°F.
Top product applications:
- Air Compressor System
- Inert Gas Systems
- Water Treatment Systems
The ASCO EF8320G17424/DCDD is a brass-bodied 3-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a configurable starting position and supports mounting in both horizontal and vertical orientations. The valve's operating pressure differential ranges from 0 to 100 psi, functioning up to a maximum fluid temperature of 200°F. It includes the coil and sealing components for installation and has electrical connections via 1/2 inch conduit with 18 inch leads. The valve is intended for controlling the flow of air, inert gases, light oil, and water.
Key Features:
- - Body Material: Brass
- - Valve Design: 3-Way/2-Position with Configurable starting configuration
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 1/4 in
- Center Line Pipe Center Size: 1-13/16 in
- - Orifice Diameter: 3/32 in
- - Coil: Included
- Coil Insulation Class F
- Wattage: 17.1 W
- Coil Enclosure: Explosion Proof, Watertight
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Seal Material: NBR
- - Maximum Fluid Temperature: 200°F
- - Operating Pressure Differential: 0 to 100 psi for Air/Inert Gas, Light Oil, and Water
- - Valve Type: Direct Mount
- - Mounting Orientation: Horizontal or Vertical
- - Environmental suitability: indoor and outdoor use
- - Inlet/Outlet Connection Type: NPTF with NPT thread type
- - Dimensions: Overall Height 3-11/16 in
- Overall Length 1-11/16 in
- Overall Width 1-13/16 in
- - Standards: ATEX, CSA, IIECEx, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 1.60
