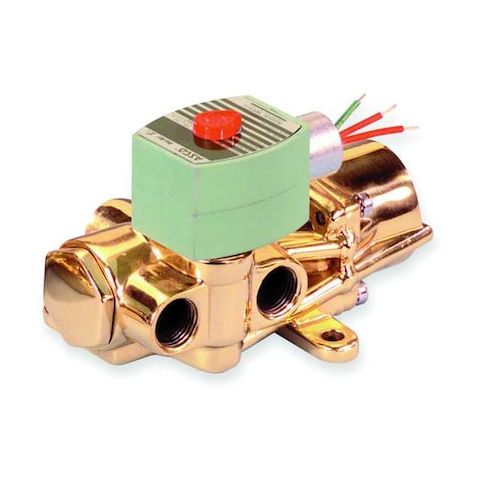

Solenoid Valve, 4-Way, 2-Position, 1/2 in Pipe Size, 120V AC, Manual Operator, Direct Acting, Brass MPN:EF8344G074MO120/60, 110/50DA
Free Shipping
In Stock
The ASCO EF8344G074MO120/60,110/50DA is a reliable and versatile solenoid valve designed for industrial applications. Suitable for controlling air, inert gases, light oil, and water flow, this valve features a 4-way/2-position design with remote actuation capabilities. Its direct-acting mechanism and brass body ensure durability and resistance to corrosion. Ideal for use in hazardous locations, this valve is also suitable for indoor and outdoor applications. With its compact size and explosion-proof coil, it's perfect for use in a variety of industries, including manufacturing, oil and gas, and water treatment.
Top product features:
- The product has a 4-way/2-position valve design with two operating positions.
- The valve is direct-acting, allowing for remote actuation and automated control.
- The valve features a brass body and includes a coil and sealing components.
Top product applications:
- Air Compressor Systems
- Industrial Process Control Systems
- Water Treatment Systems
The ASCO EF8344G074MO120/60,110/50DA is a direct-acting solenoid valve designed to control the flow of air, inert gases, light oil, and water in various industrial applications. It features a 4-way/2-position valve design with two operating positions and supports remote actuation and automated control. The valve includes an coil and sealing components and is suitable for installation in both horizontal and vertical orientations.
Key Features:
- - Body Material: Brass
- - Valve Type: Direct-Acting Solenoid Valve
- - Valve Ways: 4-Way
- - Valve Positions: 2-Position
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 1/2 in
- - Inlet/Outlet Connection Type: NPTF
- - Thread Type: NPT
- - Orifice Diameter: 3/8 in
- - Center Line Pipe Center Size: 2 in
- - Coefficient of Volume (Cv): 1.4
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differentials (Minimum/Maximum): 10 psi to 150 psi for air/inert gas, 10 psi to 125 psi for light oil and water
- - Voltage: 120V AC at 60 Hz (also compatible with 110V at 50 Hz)
- - Wattage: 10.1 W
- - Coil Enclosure: Explosion Proof, Watertight
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Environmental rating: Suitable for hazardous locations
- indoor and outdoor use
- - Seal Material: NBR (Buna-N)
- - Overall Dimensions: Length 6-1/8 in, Width 3-3/16 in, Height 5 in
- - Includes Coil: Yes
- - Includes Seal: Yes
- - Mounting Orientation: Horizontal or Vertical
- - Standards: ATEX, CSA, FM, IEC, SIL, UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.60
- Package Height: 6.10
- Package Weight: 7.55
