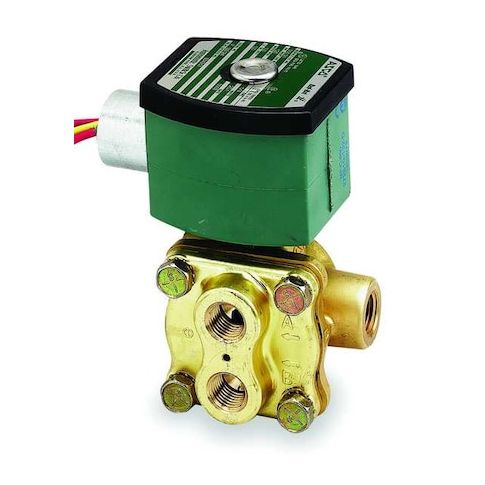

Solenoid Valve, 4-Way, 2-Position, 3/8 in Pipe Size, 120V AC, Manual Operator, Direct Acting, Brass MPN:8342G003MS120/60DA

The ASCO 8342G003MS120/60DA is a direct acting, 4-way/2-position solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. Constructed with a brass body and NBR seals, it operates within ambient temperature range 32°F to 125°F and fluid temperature maximum: 160°F. The valve includes an IP66-rated coil enclosure, environmental rating: Indoor, Outdoor, and comes with the coil and sealing components. It features NPTF inlet and outlet connections with a nominal pipe size of 3/8 inch and can be mounted horizontally or vertically.

Key Features:

• - Operation Type: Direct Acting
• - Valve Design: 4-Way/2-Position, 2-Position
• - Body Material: Brass with NBR seal material
• - Nominal Pipe Size: 3/8 in
• - Inlet/Outlet Connection Type: NPTF
• - Electrical Voltage: 120V AC at 60 Hz
• - Wattage: 20.1 W
• - Coil Enclosure: IP66-rated coil enclosure
• - Operating Pressure Differential Maximums: 125 psi for Air/Inert Gas, 100 psi for Light Oil and Water
• - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, Water
• - Orifice Diameter: 3/16 in
• - Center Line Pipe Size: 2-1/2 in
• - Ambient Temp Range: 32°F to 125°F
• - Fluid temperature maximum: 160°F
• - environmental rating: Indoor, Outdoor
• - Includes: Coil and Seals
• - Electrical Connections: 1/2 in Conduit with 18 in Leads
• - Dimensions: Overall Height 4-7/16 in, Length 2-5/8 in, Width 2-11/16 in
• - Standards: CSA, UL Listed
• - IP Rating: 66
