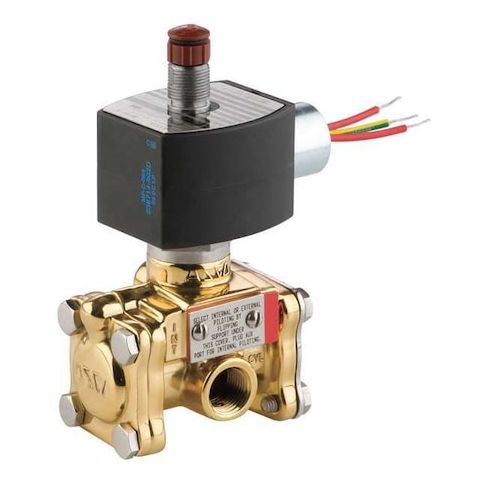

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24V DC, High Flow, FKM MPN:EV8316G384V24/DCDD
The ASCO EV8316G384V24/DCDD 3-way, 2-position solenoid valve is designed for precise control of air, inert gases, and liquids in demanding applications. Its direct-acting mechanism ensures reliable operation, while the 316 stainless steel body and FKM seal provide long-lasting durability in harsh environments. Suitable for hazardous, indoor, and outdoor use, this valve is ideal for industrial processes, such as oil and gas, chemical, and pharmaceutical manufacturing. Its high flow rate and compact design make it an excellent choice for space-constrained applications, offering precise control and efficient operation in a wide range of industries and settings.
Top product features:
- Direct Acting Mechanism
- Normally Closed Valve Design
- High Flow Rate Capability with Cv: 4
Top product applications:
- Control of Air and Inert Gases in Industrial Processes
- Control of Liquids in Industrial Processes
- Control of Gas and Liquid Mixtures in Medical Equipment
The ASCO EV8316G384V24/DCDD is a 3-way, 2-position, normally closed solenoid valve designed for controlling the flow of air, inert gases, and liquids. It operates with a direct-acting mechanism and includes an coil for actuation. The valve features a 1/2 inch nominal pipe size and 5/8 inch orifice diameter, Cv: 4. Its body material: 316 stainless steel
- Seal material: FKM. Environmental Rating: Hazardous, Indoor, Outdoor. It operates at a maximum fluid temperature of 130°F.
Key Features:
- - Valve Design: 3-Way/2-Position with 2-Position actuation
- - Operation Type: Direct Acting
- - Valve Starting Configuration: Normally Closed
- - Body Material: 316 Stainless Steel
- - Seal Material: FKM
- - Nominal Pipe Size: 1/2 in
- - Orifice Diameter: 5/8 in
- - Coefficient of Volume (Cv): 4
- - Operating Voltage: 24V DC
- - Wattage: 0.55 W
- - Coil Enclosure: Explosion Proof, Watertight
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Inlet/Outlet Connection Type: NPTF
- - Environmental Rating: Hazardous, Indoor, Outdoor
- - Maximum Fluid Temperature: 130°F
- - Operating Pressure Differential Air/Inert Gas: 0 to 130 psi
- - Includes Coil and Seal: Yes
- - Overall Dimensions (HxLxW): 6 in x 2-11/16 in x 3-1/2 in
- - Center Line Pipe Center Size: 4-7/16 in
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.60
- Package Width: 5.50
- Package Height: 6.40
- Package Weight: 4.15
