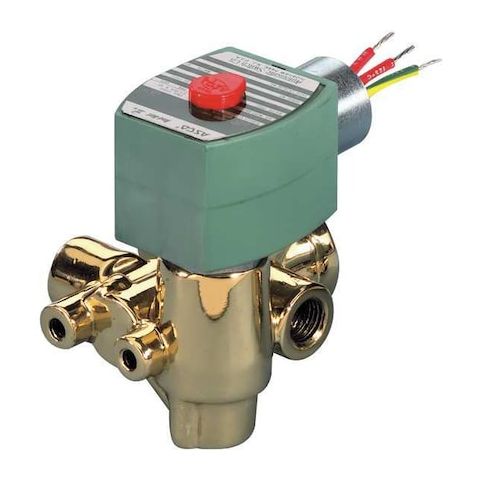

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 125V DC, Quick Exhaust, Brass MPN:EFHC8321G001125/DCDD
The ASCO EFHC8321G001125/DCDD solenoid valve is a reliable and efficient solution for controlling the flow of air, inert gases, light oil, and water in various industrial applications. Its 3-way/2-position design with quick exhaust valve type allows for automated and remote control of fluid or gas passage, making it ideal for use in manufacturing, HVAC, and water treatment systems. With its explosion-proof and watertight coil, this valve can be safely used in harsh environments and withstands temperatures up to 120°F. Its compact design and easy mounting make it a convenient choice for applications requiring precise fluid control.
Top product features:
- Valve design is 3-Way/2-Position, allowing for automated and remote control of fluid or gas passage.
- The valve is normally closed, providing a default state of fluid or gas blockage until actuated.
- The valve features a quick exhaust valve type, enabling rapid release of pressure.
Top product applications:
- Air Compressor Control
- Automated Brewing Systems
- Water Treatment Plants
The ASCO EFHC8321G001125/DCDD is a pilot-operated, normally closed solenoid valve constructed with a brass body and designed for controlling the flow of air, inert gases, light oil, and water. It features a 3-way/2-position valve design with a quick exhaust valve type, allowing automated and remote control of fluid or gas passage. The valve can be mounted in horizontal or vertical orientations and operates with a 125V DC power supply. Its coil is explosion-proof and watertight with Class H insulation, Coil Enclosure: Explosion-Proof
- Watertight
- Insulation Class: H
- Environmental Rating: Indoor/Outdoor, and includes coil and seal components.
Key Features:
- - Valve Design: 3-Way/2-Position, Normally Closed, Quick Exhaust
- - Actuator Type: Single Air Pilot, Pilot Operated
- - Body Material: Brass
- - Media Compatibility: Air, Inert Gases, Light Oil, Water
- - Maximum Fluid Temperature: 120°F
- - Operating Pressure Differential: 10 psi minimum (Light Oil)
- 200 psi maximum (Air/Inert Gas, Light Oil, Water)
- - Orifice Diameter: 9/32 in
- - Nominal Pipe Size: 1/4 in
- - Connection Types: Inlet and Outlet NPTF
- - Electrical: 125V DC, 20.6 W wattage
- Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Coil Enclosure: Explosion-Proof, Watertight
- Coil Insulation Class: H
- - Environmental Rating: Indoor/Outdoor
- - Mounting Orientation: Horizontal or Vertical
- - Dimensions: Overall Length 3-1/8 in
- Width 2-1/2 in
- Height 3-15/16 in
- - Seal Material: NBR
- - Includes: Coil and seals
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.10
- Package Height: 5.10
- Package Weight: 2.20
