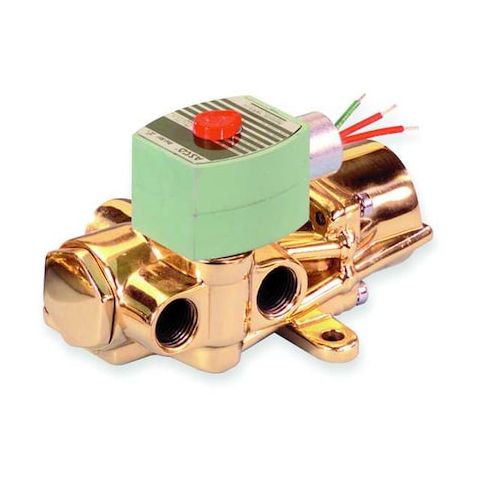

Solenoid Valve, 4-Way, 2-Position, 1/2 in Pipe Size, 120V AC, NAMUR Mount, Direct Acting, Brass MPN:8344G074MO
The ASCO 8344G074MO 4-way, 2-position direct acting solenoid valve is a reliable solution for controlling the flow of air, inert gases, light oil, and water in various applications. This compact valve features a brass body with NBR seals and supports horizontal or vertical mounting orientations. Its NAMUR mount design and Class F insulation ensure efficient operation in a wide range of environments. Suitable for use in HVAC, industrial automation, and water treatment systems, this valve offers precise control and reliable performance, making it an ideal choice for applications where precise fluid management is critical.
Top product features:
- Direct acting design for controlling the flow of air, inert gases, light oil, and water
- 4-way, 2-position valve with NAMUR mount type for flexible installation options
- IP66-rated enclosure suitable for indoor and outdoor use, sealed to prevent water ingress
Top product applications:
- Air Compressor System
- Industrial Process Control
- Water Treatment Plant
The ASCO 8344G074MO is a 4-way, 2-position direct acting solenoid valve designed for controlling the flow of air, inert gases, light oil, and water. It features a brass body with NBR seals and is designed for controlling the flow of air, inert gases, light oil, and water. The valve supports horizontal or vertical mounting orientations and includes the coil and sealing components needed for operation. Coil enclosure is sealed to prevent water ingress, rated with Class F insulation, and designed to operate at 120V AC, 60 Hz.
Key Features:
- - Valve Design: 4-Way/2-Position with NAMUR mount type
- - Body Material: Brass construction
- - Seal Material: NBR (Buna-N)
- - Orifice Diameter: 3/8 in
- - Nominal Pipe Size: 1/2 in with NPT inlet and outlet connection type (NPTF threads)
- - Flow Coefficient (Cv): 1.4
- - Operating Pressure Differential: Minimum 10 psi and maximum 150 psi for air/inert gas
- minimum 10 psi and maximum 125 psi for light oil and water
- - Maximum Fluid Temperature: 180°F
- - Electrical Connections: 1/2 in conduit with 18 in leads
- - Coil Wattage: 10.1 W
- - IP66-rated enclosure suitable for indoor and outdoor use
- - Overall Dimensions: 6-1/8 in length, 5 in height, and 3-3/16 in width
- - Includes: Coil and seals
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 7.60
- Package Height: 6.10
- Package Weight: 7.50
