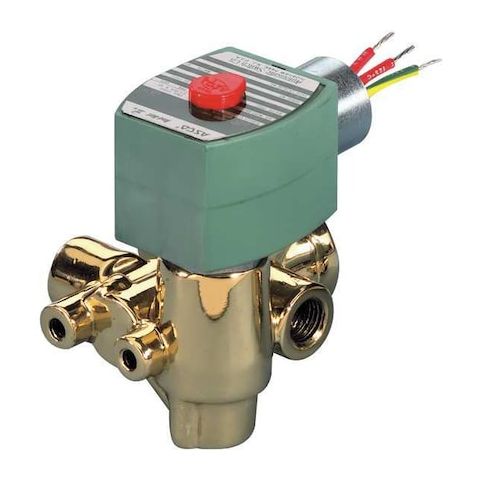

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Quick Exhaust, Brass MPN:EF8321G00224/DCDD

• The ASCO EF8321G00224/DCDD is a 3-way, 2-position solenoid valve with a normally closed starting configuration and quick exhaust valve type. It uses a single air pilot actuator for operation and features a brass valve body. Controls the flow of air, inert gases, light oil, and water via pilot actuation. The valve can be mounted horizontally or vertically and includes an explosion-proof, watertight coil enclosure with Class F coil insulation. It is rated for both indoor and outdoor environmental conditions and operates at 24 V DC with 10.6 W power consumption.

  Key Features:

  • - Valve Design: 3-Way/2-Position with Normally Closed configuration
  • - Actuation: Single Air Pilot, Pilot Operated
  • - Body Material: Brass
  • - Orifice Diameter: 9/32 in
  • - Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
  • - Coil: Included
  • Explosion Proof, Watertight enclosure
  • Class F insulation
  • 1/2 in Conduit with 18 in Leads
  • - Operating Pressure Differential: Maximum 200 psi for Air/Inert Gas, Light Oil, and Water
  • Minimum 10 psi for Light Oil
  • - Fluid Compatibility: Air, Inert Gas, Light Oil, Water
  • - Seal Material: NBR
  • - Environmental rating: Indoor and outdoor use
  • - Dimensions: Overall Length 3-1/8 in, Width 2-1/2 in, Height 3-15/16 in
  • - Voltage: 24 V DC
  • Wattage: 10.6 W
  • - Mounting Orientation: Horizontal or Vertical
