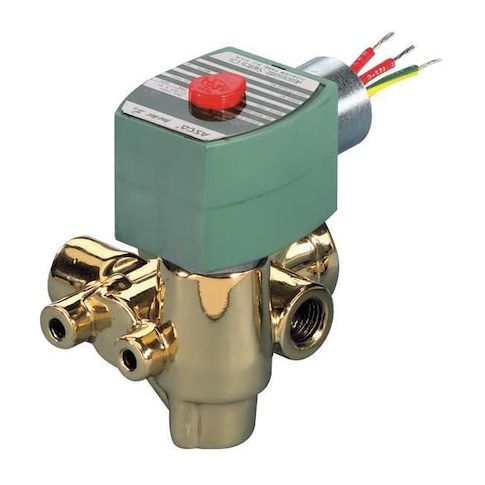

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V DC, Quick Exhaust, Brass MPN:EF8321G00124/DCDD
The ASCO EF8321G00124/DCDD is a reliable and versatile 3-way, 2-position solenoid valve designed for use with air, inert gases, light oil, and water. Its pilot-operated single air pilot actuator and quick exhaust valve type ensure efficient and precise control over fluid or gas flow. Perfect for a variety of applications, including industrial processes, laboratory settings, and medical equipment, this valve offers a high level of accuracy and reliability. Its corrosion-resistant brass body and explosion-proof coil enclosure make it suitable for both indoor and outdoor use, ensuring a long lifespan and minimal maintenance.
Top product features:
- The valve is normally closed, meaning it blocks fluid or gas flow until actuated.
- The valve is pilot-operated, using air pressure to control fluid or gas flow.
- The valve features a quick exhaust, allowing for rapid release of fluid or gas when the valve is opened.
Top product applications:
- Process Control Systems
- Automotive Applications
- Medical Equipment Control Systems
The ASCO EF8321G00124/DCDD is a 3-way, 2-position solenoid valve with a normally closed starting configuration, designed for use with air, inert gases, light oil, and water. It features a pilot-operated single air pilot actuator and a quick exhaust valve type. The valve body is made of brass and includes the coil and seals included for operation. It supports mounting in either horizontal or vertical orientation and controls fluid or gas flow via a pilot-operated actuator
- Center Line Pipe Size: 2 in
- Nominal Pipe Size: 1/4 in
- Inlet/Outlet: NPTF.
Key Features:
- - Valve Design: 3-Way/2-Position, Normally Closed
- - Actuator Type: Single Air Pilot, Pilot Operated
- - Valve Type: Quick Exhaust
- - Body Material: Brass
- - Nominal Pipe Size: 1/4 in
- Center Line Pipe Size: 2 in
- - Connection Types: Inlet and Outlet NPTF
- - Operating Pressure Differential: Maximum 200 psi for Air/Inert Gas, Light Oil, and Water
- Minimum 10 psi for Light Oil
- - Fluid Compatibility: Air, Inert Gases, Light Oil, Water
- - Coil Enclosure: Explosion Proof, Watertight
- Coil Insulation Class: F
- - Electrical: 24 VDC Voltage with 10.6 W Wattage
- 1/2 in Conduit with 18 in Leads for connections
- - Seal Material: NBR (Buna-N)
- - Environmental rating: Indoor, Outdoor
- - Dimensions: Overall Height 3-15/16 in
- Overall Length 3-1/8 in
- Overall Width 2-1/2 in
- - Mounting Orientation: Horizontal or Vertical
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 2.20
