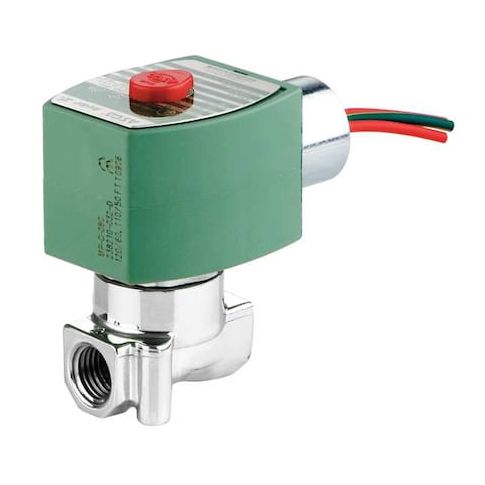

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 24V DC, High Flow, NBR MPN:8262H007

• The ASCO 8262H007 is a normally closed, direct acting 2-way/2-position solenoid valve designed for controlling the flow of liquids and gases. It features a stainless steel body with media compatibility: air, inert gas, light oil, water. The valve includes coil and seal for installation. It can be mounted horizontally or vertically and ambient operating temperature range: 14 to 140 °F, with fluid temperatures up to 180 °F. The valve's electrical connections are provided via a 1/2 inch conduit with 18-inch leads, and it operates at a nominal voltage of 24V DC with a power consumption of 10.6 watts. The enclosure is IP66-rated, designed for corrosive, hazardous, indoor, and outdoor environments, with CSA and UL Listed standards compliance.

  Key Features:

  • - Valve Type: High Flow, Direct Acting
  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Body Material: Stainless Steel
  • - Nominal Pipe Size: 1/4 in
  • Center Line Pipe Center Size: 2-1/4 in
  • - Orifice Diameter: 1/8 in
  • Coefficient of Volume (Cv): 0.35
  • - Operating Pressure Differential Maximums: 130 psi (Air/Inert Gas), 90 psi (Light Oil), 110 psi (Water)
  • - Operating Pressure Differential Minimums: 0 psi (Air/Inert Gas, Light Oil, Water)
  • - Seal Material: NBR
  • - Ambient Temperature Range: 14 to 140°F
  • Fluid Temperature Maximum: 180°F
  • - Electrical Voltage: 24V DC
  • Wattage: 10.6 W
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Coil enclosure: Without junction box
  • - Mounting Orientation: Horizontal or Vertical
  • - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
  • IP Rating: 66
  • - Overall Dimensions: Length 1-9/16 in, Width 1-11/16 in, Height 2-31/32 in
  • - Response Time: 1 second
  • - Includes Coil and Seal
  • - Thread Type: NPT
  • Inlet and Outlet Connection Type: NPTF
