Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, NBR MPN:8262H007

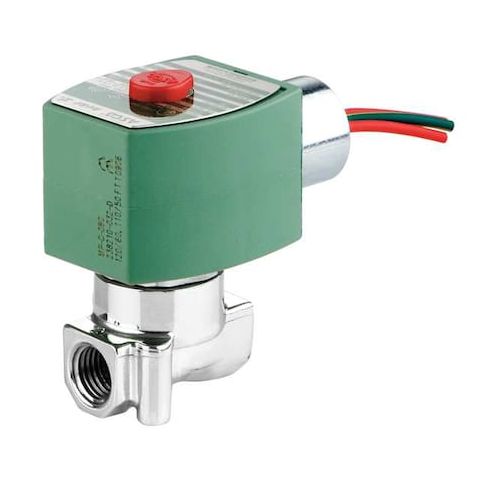

• The ASCO 8262H007 Solenoid Valve is a 2-way, 2-position direct-acting valve with a normally closed configuration. It features a stainless steel body and is designed to control the flow of air, inert gas, light oil, and water with a nominal pipe size of 1/4 inch. The valve includes an coil and sealing components made from NBR material. Its coil is rated class F for insulation and operates at 120V AC with a 60 Hz frequency. The valve supports horizontal or vertical mounting orientations and has IP66 ingress protection

• suitable for indoor and outdoor use per IP66 rating.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Direct Acting, Normally Closed
  • - Body Material: Stainless Steel
  • - Nominal Pipe Size: 1/4 in
  • Orifice Diameter: 1/8 in
  • Center Line Pipe Center Size: 2-1/4 in
  • - Operating Pressure Differential: Maximum 130 psi (Air/Inert Gas), 110 psi (Water), 90 psi (Light Oil)
  • Minimum 0 psi
  • - Fluid Compatibility: Air, Inert Gas, Light Oil, Water
  • - Electrical: 120V AC, 60 Hz, 10.6 W wattage, coil enclosure watertight without junction box, electrical connection via 1/2 in conduit with 18 in leads
  • - Coil Insulation Class: F
  • Includes Coil and Seal
  • - Environmental Rating: IP66
  • Indoor/Outdoor use per IP66
  • - Dimensions: Overall Length 1-9/16 in, Width 1-11/16 in, Height 2-31/32 in
  • - Valve Type: 2-way/2-position, direct-acting, normally closed
  • Port size 1/4 in
  • Orifice diameter 1/8 in
  • - Thread Type: NPT inlet and outlet with NPTF connection type
