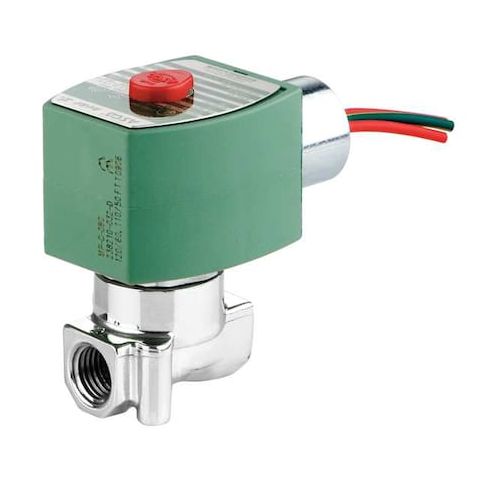

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, NBR MPN:8262H230
The ASCO 8262H230 Solenoid Valve is a reliable and efficient solution for controlling the flow of liquids and gases in various applications. Suitable for use with air, inert gases, light oil, and water, this valve is ideal for industrial processes, laboratory settings, and commercial facilities. Its high flow rate and fast response time make it an excellent choice for applications requiring precise control and minimal downtime. With its durable stainless steel body and NBR seals, this valve provides long-lasting performance and resistance to corrosion. Perfect for use in a range of industries, including manufacturing, healthcare, and research.
Top product features:
- Direct-acting mechanism that opens or closes the flow path using an energized coil
- High flow rate design for efficient fluid or gas transfer
- Stainless steel body with NBR seals for durability and chemical resistance
Top product applications:
- Automotive Fuel Injection Systems
- Industrial Process Control Systems
- Pneumatic Tool and Equipment Control Systems
The ASCO 8262H230 is a 2-way, 2-position solenoid valve with a normally closed starting configuration, designed for controlling the flow of liquids and gases. It operates via a direct-acting mechanism using an energized coil to open or close its flow path. Compatible with air, inert gases, light oil, and water within specified operating conditions. It includes the coil and sealing components required for operation and is constructed with a stainless steel body and NBR seals. The valve supports mounting in either horizontal or vertical orientations and features a coil enclosure that is IP66-rated
- NEMA 1, 2, 3, 3S, 4, 4X provide environmental protection for indoor and outdoor use.
Key Features:
- - Nominal Pipe Size: 1/4 in with NPT threaded inlet and outlet connections (NPTF type)
- - Center Line Pipe Center Size: 2-13/16 in
- - Operating Pressure Range: 0 to 90 psi for air/inert gas, light oil, and water
- - Coil: Includes coil with Class F insulation, 120V AC voltage, 50/60 Hz frequency, and 17.1 W power consumption
- - Orifice Diameter: 9/32 in
- - Response Time: Approximately 1 second
- - Enclosure Rating: IP66 with NEMA 1, 2, 3, 3S, 4, 4X ratings for electrical and environmental protection
- - Enclosure ratings IP66 and NEMA 1, 2, 3, 3S, 4, 4X provide environmental protection for indoor and outdoor use
- - Overall Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in
- - Valve Type: High Flow, direct acting
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.50
- Package Height: 4.20
- Package Weight: 1.39
