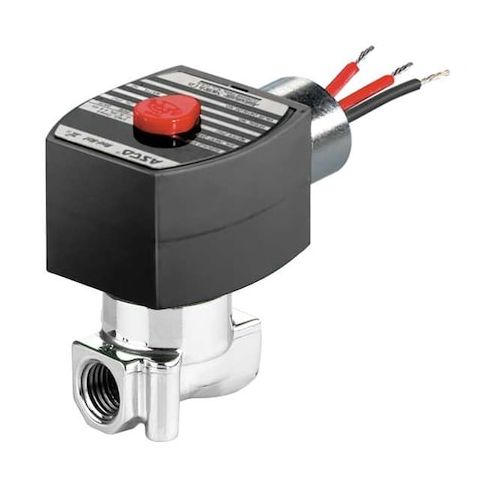

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, FKM MPN:EF8262H226V
The ASCO EF8262H226V solenoid valve is a reliable and efficient solution for controlling fluid flow in various applications. Its 2-way, 2-position design provides precise control over the flow of air, inert gases, light oil, and water, making it ideal for use in pneumatic systems, industrial processes, and laboratory settings. With its high flow rate and fast response time of just 1 second, this valve can handle demanding applications while minimizing downtime. Its compact design and durable construction make it easy to integrate into new or existing systems, offering a reliable and efficient solution for a wide range of applications.
Top product features:
- Direct-acting operation allows for fast and reliable valve control.
- The valve features a stainless steel body for durability and resistance to corrosion.
- The FKM seals provide a watertight seal for safe and leak-free operation.
Top product applications:
- Air Compressor Control Systems
- Industrial Process Control Systems
- Automotive and Aerospace Fluid Handling Systems
The ASCO EF8262H226V is a 2-way, 2-position, normally closed solenoid valve featuring direct-acting operation
- flow characteristics are not specified. It is constructed with a stainless steel body and FKM seals, designed to handle fluids such as air, inert gases, light oil, and water. The valve operates on 120V AC at 60 Hz with a wattage of 10.1 W, and includes the coil and sealing components necessary for installation. It supports both horizontal and vertical mounting orientations. The valve’s operation is controlled by a watertight coil enclosure with Class F insulation.
Key Features:
- - Nominal Pipe Size: 1/4 in with NPTF inlet and outlet connections
- - Center Line Pipe Center Size: 2-13/16 in
- - Orifice Diameter: 7/32 in
- - Maximum Ambient Temperature: 131°F
- Minimum Ambient Temperature: -13°F
- - Maximum Fluid Temperature: 180°F
- - Maximum Operating Pressure Differential: 100 psi (Air/Inert Gas, Fuel Oil, Light Oil, Water)
- - Minimum Operating Pressure Differential: 0 psi (Air/Inert Gas, Fuel Oil)
- - Response Time: 1 second
- - Overall Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Valve Starting Configuration: Normally Closed
- - Includes: Coil and Seals
- - Certifications: CE, CSA, FM, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 3.20
- Package Height: 3.80
- Package Weight: 1.40
