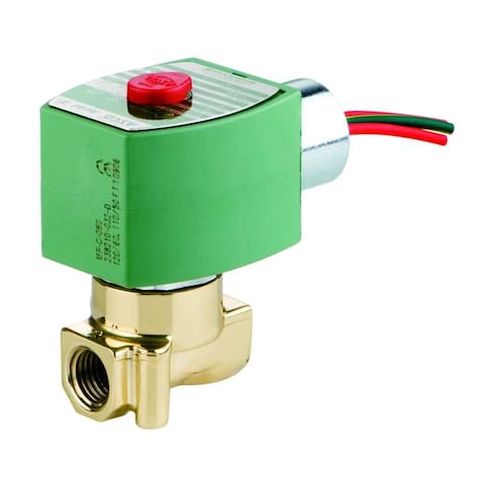

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 12V DC, High Flow, Brass, NBR MPN:8262H020

• The ASCO 8262H020 is a 2-way, 2-position solenoid valve with a normally closed configuration, designed for controlling the flow of air, inert gas, light oil, and water. It operates as a direct-acting valve and includes the coil and seal components necessary for operation. The valve is constructed with a brass body and has NPTF inlet and outlet connections with a nominal pipe size of 1/4 inch. Mounting orientation: Horizontal or Vertical. Ambient temperature range: 14°F to 140°F

• Fluid temperature maximum: 180°F. IP66 enclosure rating
• CSA and UL Listed.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed starting configuration
  • - Operation Type: Direct Acting
  • - Body Material: Brass
  • - Connection Types: NPTF inlet and outlet, 1/4 in nominal pipe size
  • - Orifice Diameter: 3/32 in
  • - Flow Coefficient (Cv): 0.21
  • - Operating Pressure Differential (Maximum): 235 psi Air/Inert Gas, 160 psi Light Oil, 330 psi Water
  • - Operating Pressure Differential (Minimum): 0 psi for Air/Inert Gas, Light Oil, and Water
  • - Electrical: 12V DC voltage with 6.1 W wattage coil, 1/2 in conduit with 18 in leads
  • - Coil Enclosure: Watertight without junction box
  • Coil Insulation Class H
  • - Ambient Temperature Range: 14°F minimum to 140°F maximum
  • - Fluid Temperature Maximum: 180°F
  • - Mounting Orientation: Horizontal or Vertical
  • - Environmental rating: IP66 enclosure
  • NEMA ratings 1, 2, 3, 3S, 4, 4X
  • - Includes seal and coil
  • - Overall Dimensions: Length 1-9/16 in, Width 1-11/16 in, Height 2-31/32 in
  • - Response Time: 1 second
  • - Seal Material: NBR (Buna-N)
