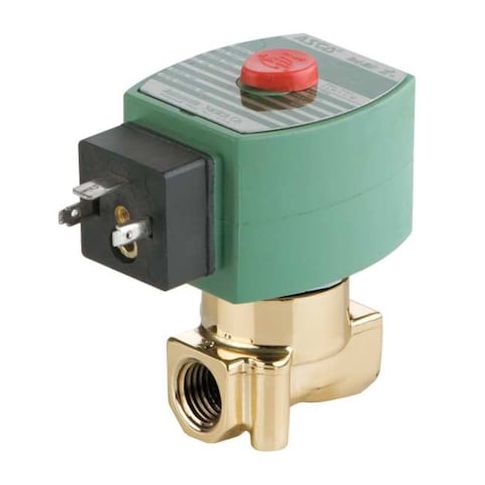

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass MPN:SC8262H232
The ASCO SC8262H232 Solenoid Valve is a versatile and reliable solution for controlling the passage of fluids and gases in a wide range of applications. Suitable for use with air, ammonia, biodiesel fuel, and other media, this high-flow valve features a brass body and NBR seals for durability and resistance to corrosion. Its compact design and ability to operate in either horizontal or vertical orientation make it ideal for use in indoor and outdoor environments, including corrosive and hazardous areas. Perfect for use in industrial, commercial, and residential settings, this valve is a reliable choice for controlling fluid flow.
Top product features:
- 2-way, 2-position, normally closed valve design allows for precise control over fluid and gas passage.
- High flow rate enables efficient and rapid transfer of media.
- Direct-acting operation allows for quick response to electrical signal, enabling fast and reliable control over fluid and gas flow.
Top product applications:
- Water Treatment Systems
- Fuel Oil Distribution Systems
- Natural Gas Distribution Systems
The ASCO SC8262H232 Solenoid Valve is a 2-way, 2-position, normally closed, direct-acting valve designed to control the passage of fluids and gases. It features a brass body with NBR seals and includes the coil necessary for operation. Compatible with media including air, ammonia, biodiesel fuel, fuel oil, hot water, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water. The valve can be installed in either horizontal or vertical orientation. Environmental rating: Corrosive, Hazardous, Indoor, Outdoor.
Key Features:
- - Body Material: Brass
- - Seal Material: NBR
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Nominal Pipe Size: 1/4 in
- - Orifice Diameter: 1/8 in
- - Center Line Pipe Center Size: 2-13/16 in
- - Maximum Ambient Temperature: 140°F
- - Minimum Ambient Temperature: 14°F
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential Maximums: 340 psi (Air/Inert Gas), 215 psi (Light Oil), 300 psi (Water)
- - Operating Pressure Differential Minimums: 0 psi (Air/Inert Gas, Light Oil, Water)
- - Voltage: 120V AC
- - Wattage: 10.1 W
- - Electrical Connections: DIN
- - Coil Enclosure: Without Junction Box, Watertight
- - Coil Insulation Class: F
- - Includes: Coil and Seal
- - Inlet and Outlet Connection Types: NPTF
- - Mounting Orientation: Horizontal or Vertical
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - IP Rating: 66
- - Standards: CSA, UL Listed
- - Overall Dimensions: Length 1-9/16 in, Width 1-15/16 in, Height 3-1/8 in
- - Valve Type: High Flow
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 3.70
- Package Height: 3.30
- Package Weight: 1.31
