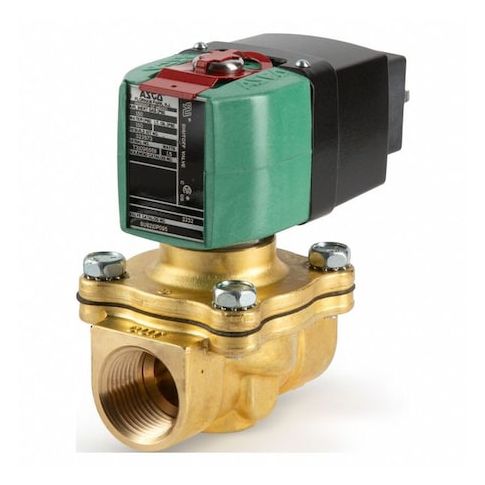

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1/2 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:SU8210P034 100-240

• The ASCO SU8210P034 100-240 is a pilot-operated, 2-position solenoid valve designed for controlling the flow of various fluids and gases, media: air, inert gas, light oil, and water within the specified operating ranges. It features a normally open valve position and a high flow valve type. The valve body is constructed of brass and includes an integrated coil rated for 100 to 240V AC/DC operation at 60 Hz, enclosed within a conduit hub for electrical connections. The valve is intended to be mounted vertically and operates within an ambient temperature range of 14°F to 140°F, with a maximum fluid temperature of 180°F.

  Key Features:

  • - Valve Type: High Flow, 2-Way
  • - Operation: Pilot Operated, Normally Open, 2-Position
  • - Body Material: Brass
  • - Nominal Pipe Size: 1/2 in with NPT inlet and outlet connections
  • - Orifice Diameter: 5/8 in
  • - Operating Pressure Differential (Maximum): 350 psi Air/Inert Gas, 125 psi Light Oil, 150 psi Water
  • - Operating Pressure Differential (Minimum): 0 psi for Air/Inert Gas, Light Oil, and Water
  • - Coil: Included, 1.5 W wattage, Class H insulation, operating at 60 Hz frequency
  • - Electrical Connections: DIN with 1/2 in Conduit Hub
  • - Ambient operating temperature range: 14°F to 140°F
  • Maximum fluid temperature: 180°F
  • No explicit environmental protection rating is provided
  • - Response Time: 1 second
  • - Seal Material: NBR (Buna-N)
  • - Mounting Orientation: Vertical
  • - Standards: UL Listed
