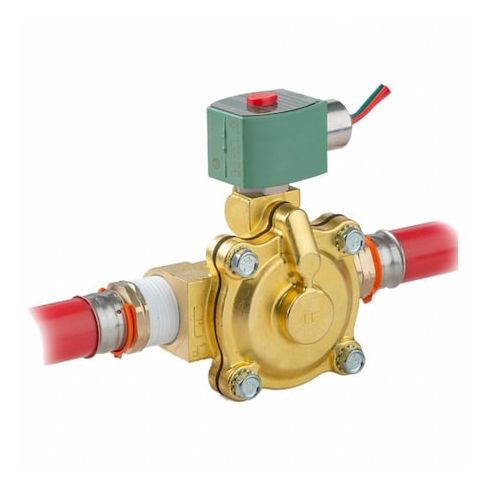

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 12V DC, High Flow, Brass MPN:K210G002LFXC 12/DC

• The ASCO K210G002LFXC 12/DC is a pilot-operated, normally closed solenoid valve designed for controlling the flow of various fluids including air, inert gases, and water. It features a brass body construction. The valve supports operation within ambient temperatures from 32°F to 125°F and fluid temperatures up to 180°F. It comes with an integrated coil and seals for installation. This valve provides automated flow control with a maximum operating pressure differential of 350 psi for air/inert gases and 100 psi for water, with minimum pressure differentials of 5 psi for both media.

  Key Features:

  • - Valve Type: High Flow, Pilot Operated, Normally Closed
  • - Valve Ways: 2-Way, 2-Position configuration
  • - Body Material: Brass
  • - Orifice Diameter: 5/8 in
  • - Connections: Inlet and Outlet Press-fit with NPT threads
  • - Voltage: 12 V DC with 11.6 W coil power consumption
  • - Coil Enclosure: Watertight with Class F insulation
  • - Operating Pressure Differential: Maximum 350 psi Air/Inert Gas, 100 psi Water
  • Minimum 5 psi for both Air/Inert Gas and Water
  • - Ambient Temperature Range: 32°F minimum to 125°F maximum
  • - Fluid Temperature Maximum: 180°F
  • - Seal Material: NBR and PTFE
  • - Overall Dimensions: Height 3-3/8 in, Length 2-3/4 in, Width 2-9/32 in
  • - Includes: Coil and sealing components
  • - Standards: CSA, SDWA, UL Listed
  • - NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
