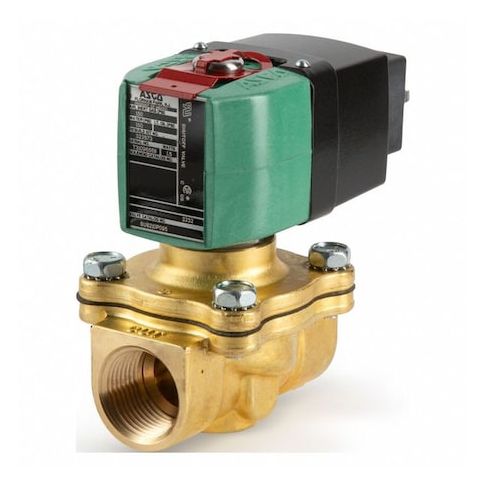

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:SU8210P095 100-240
The ASCO SU8210P095 100-240 Solenoid Valve is a high-performance, pilot-operated valve designed for applications requiring fast response times and high flow rates. Suitable for use in various industries, including chemical, oil and gas, and water treatment, this valve excels in environments with aggressive fluids and temperatures up to 180°F. Its brass body and NBR seals ensure durability and resistance to corrosion. With a 1-second response time and 100-240V AC/DC operation, this valve is ideal for applications such as water treatment, chemical processing, and oil and gas production, where precise control and high flow rates are critical.
Top product features:
- High Flow design allows for efficient fluid movement
- Pilot-operated design enables a 1-second response time
- Class H insulation supports operation in a wide ambient temperature range
Top product applications:
- Air Compressor Systems
- Industrial Process Control Systems
- Pneumatic Tool Systems
The ASCO SU8210P095 100-240 Solenoid Valve is a pilot-operated, normally closed valve designed for a 1-second response time. Constructed with a brass body and equipped with an included coil featuring class H insulation, it supports operation within an ambient temperature range of 14°F to 140°F. This 2-way valve
- orifice diameter 3/4 in and nominal pipe size of 3/4 inch. The valve operates with a voltage range of 100V to 240V AC/DC at 60 Hz frequency and includes DIN electrical connections with a 1/2 inch conduit hub for wiring.
Key Features:
- - Valve Type: High Flow, Pilot Operated, Normally Closed
- - Body Material: Brass
- - Valve Ways: 2-Way
- - Nominal Pipe Size and Orifice Diameter: 3/4 in
- - Operating Pressure Differential: Maximum 350 psi (Air/Inert Gas), 150 psi (Water)
- Minimum 0 psi
- - Fluid Temperature Maximum: 180°F
- - Media Compatibility: Air, Aggressive Gases, Aggressive Liquids, Ammonia, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water
- - Electrical: 100V to 240V AC/DC, 60 Hz frequency, 1.5 W wattage, Coil Insulation Class H
- - Coil Enclosure: Conduit Hub
- - Electrical Connections: DIN with 1/2 in Conduit Hub
- - Seal Material: NBR
- - Mounting Orientation: Vertical
- - Response Time: 1 sec
- - Environmental Rating: Corrosive, Hazardous, Indoor, Outdoor
- - Standards: UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 4.40
- Package Height: 2.90
- Package Weight: 2.47
