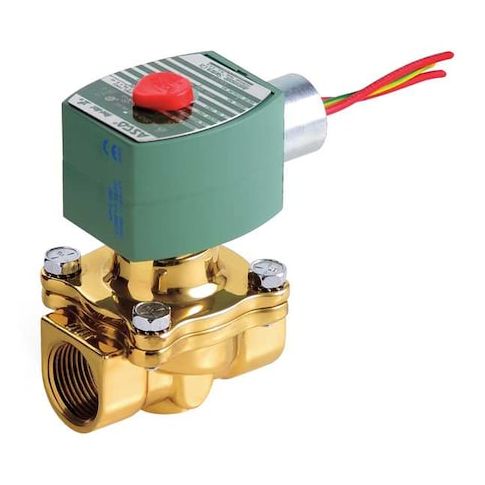

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass MPN:8210H106B
The ASCO 8210H106B solenoid valve is a reliable and efficient solution for controlling the flow of fuel oil and gas media. Ideal for use in a variety of applications, including petroleum gas distribution and industrial processes, this valve features a normally closed starting configuration and a brass body with NBR seals. With a high flow coefficient and a wide operating pressure differential range, it can handle demanding applications with ease. The valve's compact design and watertight coil enclosure make it suitable for indoor and outdoor use, while its CSA, FM, and UL certifications ensure compliance with industry standards.
Top product features:
- The valve is pilot-operated, allowing for precise control over fluid flow.
- The valve has a high flow coefficient (Cv) of 3.6, enabling high fluid flow rates.
- The valve is designed for use with petroleum gases, such as propane, and has a wide operating pressure differential range.
Top product applications:
- Fuel Oil and Gas Systems
- Industrial Process Control
- Petroleum Refining
The ASCO 8210H106B solenoid valve is a pilot-operated, 2-way, 2-position valve featuring a normally closed starting configuration. Constructed with a brass body and equipped with NBR seals, this valve controls the flow of fuel oil and gas media with a flow coefficient (Cv) of 3.6 through a 5/8-inch orifice diameter. It is designed for use with petroleum gases such as propane and has an operating pressure differential range from 5 psi minimum up to 350 psi for air/inert gas and 25 psi for water. This valve operates at 120V AC and 60 Hz frequency and comes with a coil included, rated for 17.1 watts power consumption and Class F coil insulation for thermal endurance.
Key Features:
- - Valve Design: 2-Way/2-Position, pilot operated
- - Body Material: Brass
- - Seal Material: NBR
- - Orifice Diameter: 5/8 in
- - Flow Coefficient (Cv): 3.6
- - Nominal Pipe Size: 1/2 in with NPT inlet and outlet connections
- - Operating Pressure Differential: 5 psi minimum
- 350 psi max air/inert gas, 25 psi max water
- - Operating Temperature Range: -20°F to 125°F ambient
- fluid max 125°F
- - Electrical: 120V AC, 60 Hz
- 17.1 W coil power
- coil enclosure: watertight
- IP rating not specified, general purpose without junction box
- - Electrical Connections: 1/2 in conduit hub
- - Mounting Orientation: Vertical
- - Valve Starting Configuration: Normally Closed
- - Response Time: 1 second
- - Environmental usage: indoor and outdoor environments
- - Dimensions: Overall length 3-7/16 in
- height 3-15/16 in
- width 2-9/32 in
- - Includes: Coil and seals
- - Certifications: CSA, FM, UL
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 3.10
- Package Height: 5.10
- Package Weight: 2.21
