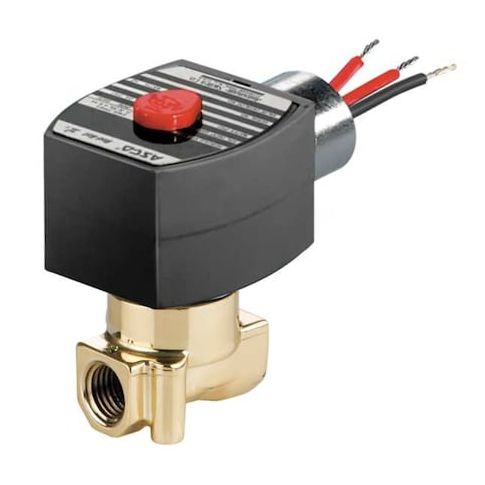

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, High Flow, Brass MPN:EF8262H014
Control fluid flow with precision and reliability using the ASCO EF8262H014 2-way, 2-position direct acting solenoid valve. Designed for use in a variety of applications, including air, inert gas, light oil, and water systems, this high-flow valve features a brass body and NBR seal material for durability and resistance to corrosion. Its explosion-proof and watertight coil enclosure ensures safe operation in harsh environments. Suitable for use in horizontal or vertical orientations, this valve is ideal for applications in the aerospace, industrial, and medical industries, where precise control and reliability are critical.
Top product features:
- Direct acting operation allows for quick and precise control of fluid flow.
- The valve has a normally closed configuration, allowing for automatic shut-off when not energized.
- The brass body and NBR seal material provide durability and resistance to corrosion in a variety of fluids.
Top product applications:
- Air Compressor Systems
- Inert Gas Systems
- Water Treatment Systems
The ASCO EF8262H014 is a 2-way, 2-position direct acting solenoid valve with a normally closed configuration. It features a brass body and NBR seal material, designed to control the flow of air, inert gas, light oil, and water. The valve is supplied with a coil enclosed in a housing with explosion-proof and watertight construction, and operates at 120V AC with a power consumption of 6.1 watts. It is suitable for installation in either horizontal or vertical orientations and is rated for ambient temperatures ranging from -13°F to 131°F, with a maximum fluid temperature of 180°F.
Key Features:
- - Valve Design: 2-Way/2-Position, Normally Closed
- - Operation Type: Direct Acting
- - Body Material: Brass
- - Seal Material: NBR
- - Media Compatibility: Air, Inert Gas, Light Oil, Water
- - Electrical: 120V AC, 60 Hz, 6.1 W power consumption
- - Coil Enclosure: Explosion Proof, Watertight, includes coil
- - Electrical Connection: 1/2 in Conduit with 18 in Leads
- - Mounting Orientation: Horizontal or Vertical
- - Maximum Ambient Temperature: 131°F
- - Minimum Ambient Temperature: -13°F
- - Maximum Fluid Temperature: 180°F
- - Operating Pressure Differential Maximums: 370 psi Air/Inert Gas, 190 psi Light Oil, 330 psi Water
- - Minimum Operating Pressure Differential: 0 psi for Air/Inert Gas, Light Oil, and Water
- - Orifice Diameter: 3/32 in
- - Nominal Pipe Size: 1/8 in
- - Connection Type: NPTF inlet and outlet
- - Dimensions (H × L × W): 2-27/32 in × 1-3/16 in × 1-11/16 in
- - Response Time: 1 sec
- - Certifications: CE, CSA, FM, UL Listed
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 3.50
- Package Height: 4.20
- Package Weight: 1.05
