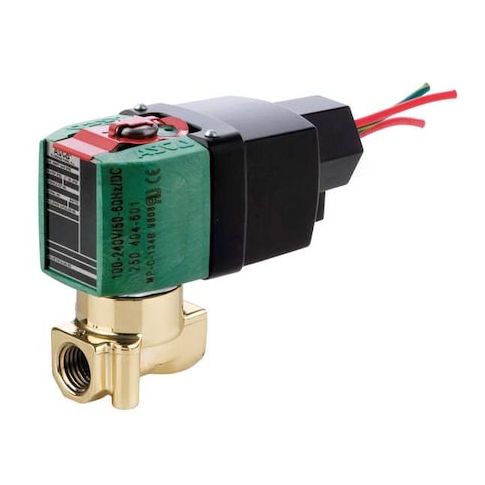

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 100V to 240V AC/DC, High Flow MPN:8262R202

• The ASCO 8262R202 is a 2-way, 2-position direct acting solenoid valve with a brass body and NBR seals. It operates in a normally closed configuration, controlling the flow of air, inert gas, light oil, and water through a 1/4 inch nominal pipe size with NPTF inlet and outlet connections. Coil enclosure: watertight

• junction box not included. It is designed for an operating temperature range of -13°F to 131°F and a maximum fluid temperature of 180°F. The valve can be mounted in either horizontal or vertical orientation and features an IP66 rating for protection from dust and water.

  Key Features:

  • - Valve Design: 2-Way/2-Position, Normally Closed
  • - Body Material: Brass
  • - Seal Material: NBR
  • - Nominal Pipe Size: 1/4 in with NPT thread type and NPTF inlet and outlet connections
  • - Orifice Diameter: 5/32 in
  • - Differential pressure range: 0–300 psi (air/inert gas)
  • 0–225 psi (light oil and water)
  • - Coil Enclosure: watertight
  • junction box not included
  • - Coil Insulation Class: H
  • - Electrical Connections: 1/2 in Conduit with 18 in Leads
  • - Voltage: 100V to 240V AC/DC at 60 Hz frequency
  • - Wattage: 2 W
  • - Mounting Orientation: Horizontal or Vertical
  • - Dimensions: Overall Length 3-31/32 in, Overall Height 3-1/16 in, Overall Width 1-7/8 in
  • - Includes: Coil and Seal
  • - IP Rating: 66
  • - Standards: CE, CSA, UL Listed
  • - Valve Type: High Flow
