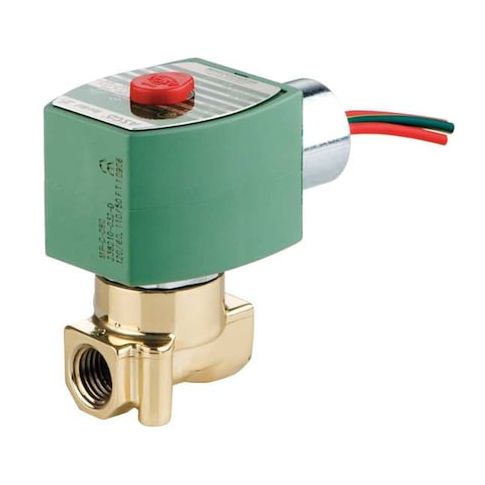

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Cryogenic, Brass MPN:8263H240LT

• The ASCO 8263H240LT is a direct-acting, normally closed solenoid valve rated for flow control of cryogenic fluids, air/inert gas, light oil, and water within the specified pressure differentials (0 to 155 psi for air/inert gas, light oil, and water

• 0 to 130 psi for cryogenic fluids). It features a 2-way/2-position valve design with a brass body and PTFE seat and seal materials. The valve supports horizontal or vertical mounting orientation and is rated for operation at 120 V AC, 60 Hz
• insulation class F
• watertight coil enclosure. It includes the coil required for operation and sealing components for installation.

  Key Features:

  • - Valve Type: Cryogenic, Direct Acting, Normally Closed
  • - Valve Design: 2-Way/2-Position with 1/8 in orifice diameter
  • - Connection Type and Size: Inlet and outlet NPTF threads, nominal pipe size 1/8 in, thread type NPT
  • - Body Material: Brass
  • Seal/Seat Material: PTFE
  • - Operating Pressure Differential: 0 to 155 psi for Air/Inert Gas, Light Oil, and Water
  • 0 to 130 psi for Cryogenic Fluids
  • - Temperature Range: Ambient -13°F to 131°F
  • Fluid up to 150°F
  • - Electrical: 120V AC, 60 Hz, 10.1 W coil wattage, 1/2 in conduit with 18 in leads
  • - Dimensions: Overall length 1-9/16 in, width 1-31/32 in, height 3-5/32 in
  • - Includes: Coil and sealing components
