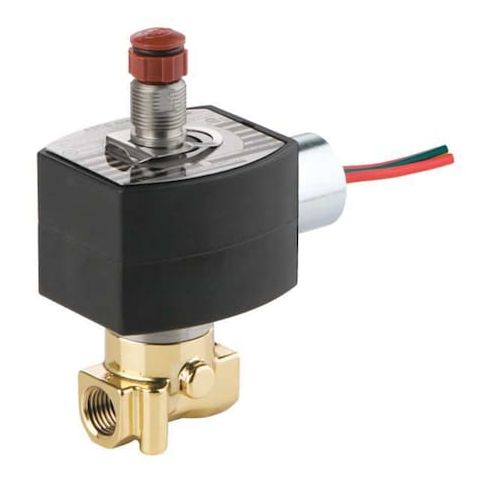

Solenoid Valve, 3-Way, 2-Position, Configurable, 1/4 in Pipe Size, 12V DC, Moderate Flow, NBR MPN:EF8314H301 12/DC
Out Of Stock
The ASCO EF8314H301 12/DC is a versatile and reliable 3-way solenoid valve designed for a wide range of industrial applications. With its 12V DC electrical supply and direct acting mechanism, it provides moderate flow rates and is compatible with air and inert gases. Its stainless steel body and NBR seals ensure durability and resistance to corrosion. The valve's configurable starting position and explosion-proof coil enclosure make it suitable for use in both indoor and outdoor conditions, making it an ideal choice for applications in industries such as oil and gas, chemical processing, and HVAC.
Top product features:
- The valve has a 3-way/2-position design allowing for multiple fluid flow configurations.
- The valve operates on a direct acting mechanism for fast and reliable operation.
- The valve has a configurable starting position allowing users to customize its initial state.
Top product applications:
- Air Compressor Systems
- Medical Gas Systems
- Industrial Process Control
The ASCO EF8314H301 12/DC is a stainless steel solenoid valve featuring a direct acting mechanism with a 3-way/2-position valve design. It operates on 12V DC electrical supply and includes the necessary coil and seal components. Fluid compatibility: Air, Inert Gas. It has an orifice diameter of 1/16 inch. Coil enclosure rated Explosion-Proof and Watertight with a Class F coil insulation rating, supporting use in both indoor and outdoor conditions. The valve’s nominal pipe size is 1/4 inch, with NPTF inlet and outlet connections, and a configurable starting position.
Key Features:
- - Body Material: Stainless steel
- - Valve Design: 3-Way/2-Position, 2-Position
- - Operating Voltage: 12V DC
- - Coil enclosure rated Explosion-Proof and Watertight
- - Coil Insulation Class: F
- - Electrical Connections: 1/2 in Conduit with 18 in Leads
- - Fluid Compatibility: Air, Inert Gas
- - Maximum Fluid Temperature: 149°F
- - Maximum Operating Pressure Differential (Air/Inert Gas): 130 psi
- - Minimum Operating Pressure Differential (Air/Inert Gas): 0 psi
- - Orifice Diameter: 1/16 in
- - Nominal Pipe Size: 1/4 in
- - Inlet and Outlet Connection Type: NPTF
- - Includes: Coil and Seal
- - Flow characteristics defined by orifice diameter and differential pressure (orifice diameter: 1/16 in
- differential pressure: 0–130 psi)
- - Overall Dimensions: Length 1-5/8 in, Width 2 in, Height 4-3/8 in
- - Seal Material: NBR
- - Standards: UL Listed
- - Environmental Rating: Indoor, Outdoor
- - Valve Starting Configuration: Configurable
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.10
- Package Width: 4.20
- Package Height: 3.00
- Package Weight: 1.55
