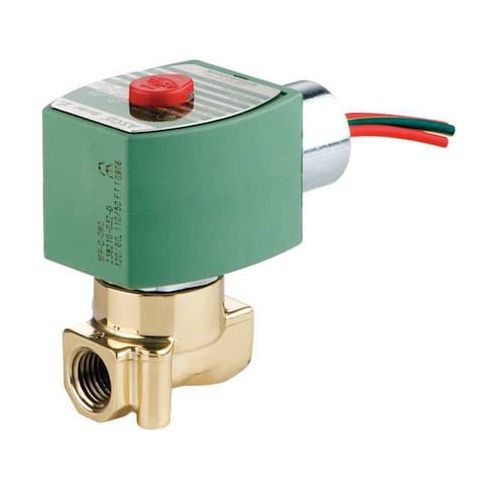

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, High Flow, Brass MPN:8262H013V

• The ASCO 8262H013V Solenoid Valve is a direct-acting, normally closed 2-way/2-position valve designed for controlling the flow of air, inert gas, light oil, and water. It features a brass valve body and includes both the coil and necessary seals. Suitable for installation in either horizontal or vertical orientations. Ambient operating temperature range: -13°F to 131°F

• maximum fluid temperature: 180°F. Approved for industrial use
• CE, CSA, FM, and UL-listed
• compatible with equipment in industrial facilities per listed standards
• NEMA ratings: 1, 2, 3, 3S, 4, 4X.

  Key Features:

  • - Valve Type: Direct Acting, Normally Closed configuration
  • - Valve Design: 2-Way/2-Position with 2-Position operation
  • - Material: Brass valve body with FKM sealing material
  • - Connections: Inlet and outlet with NPTF thread type, nominal pipe size 1/4 in
  • - Electrical: 120V AC voltage, 60 Hz frequency, 6.1 W coil wattage, with 1/2 in conduit and 18 in leads
  • - Enclosure: Coil enclosure: watertight
  • no junction box included
  • - NEMA rating: 1, 2, 3, 3S, 4, 4X enclosures
  • - Pressure differential: Air/inert gas 0–55 psi
  • light oil 0–40 psi
  • water 0–54 psi
  • - Flow Capacity: Coefficient of volume (Cv) of 0.73, orifice diameter 7/32 in
  • - Dimensions: Overall length 1-9/16 in, height 2-31/32 in, width 1-11/16 in
  • - Response time: approximately 1 second (typical under test conditions
  • actual time may vary)
  • - Mounting Orientation: Can be installed horizontally or vertically
  • - Standards: Certified to CE, CSA, FM, and UL Listed
  • - NEMA Rating: Rated for 1, 2, 3, 3S, 4, and 4X enclosures
